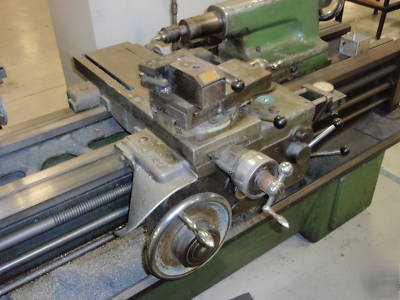

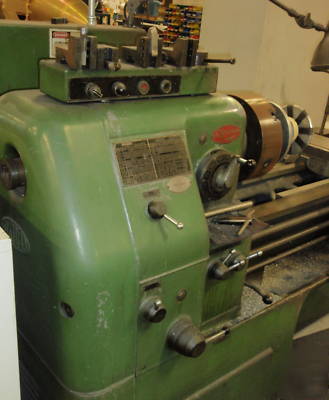

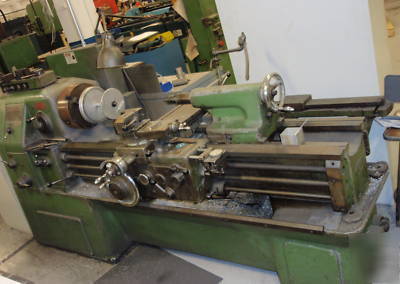

Okuma 10X40 type ls lathe, 85-1800RPM, lots of tooling

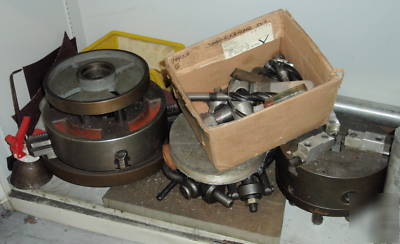

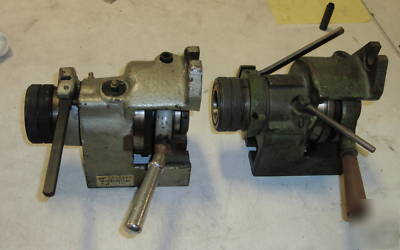

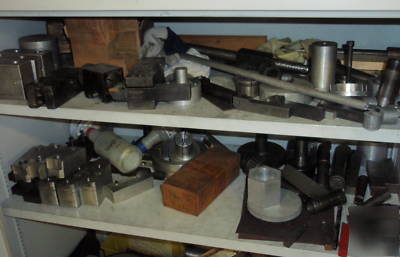

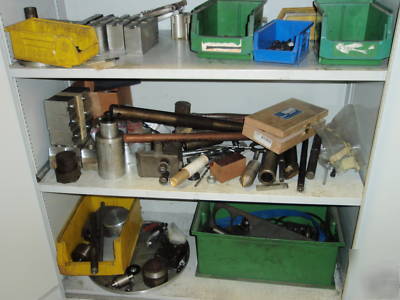

Okuma High Speed 10 x 40 Type LS 450 X 1250 Lathe, Spindle Speeds 85-1800 RPM - Two Okuma Air Operated 5C Collet Closers, a 5C Collet Chuck Adapter, Three cabinets of Tooling, S/N 4109-10298, Drive Motor 10 HP, 220/440V, 3 Phase:
* Height of Center Over Bed - 10.6 Inches
* Swing Over Bed - 21.2 Inches / Over Cross Slide 13.7 Inches
* Distance Between Centers - 51 Inches
* Headstock - Spindle Dia. at Front Bearing 3.93 Inches / Dia. of Through Hole 2 Inches / Taper of Spindle Bore No. 6 Morse / Taper of Center No. 4 Morse / Type of Spindle Nose ASA A-1-6"
* Non-Geometrical Progression of 12 Spindle Speeds / Range of Speeds 35-1800 RPM
* Cross Slide Travel 10.6 Inches
* Compound Rest Travel 180 Degrees
* Max. Size of Cutting Tool 1 X 1
* Spindle Travel 5.9 Inches / Dia. 2.56 Inches / Taper of Center No. 4 Morse
* Weight Approx. 7,000 Pounds
* Manuals and Drawings included
Still operable and can be demonstrated; being removed from aerospace plant shutdown. Must be out of building by mid-January so make us an offer!
