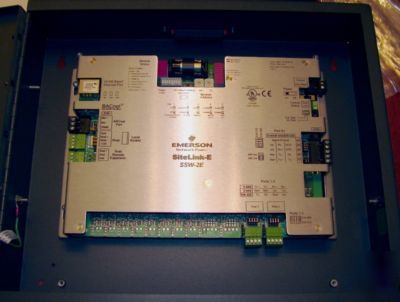

Liebert sitelink-2E vssw-2E with enclosure
Liebert / Emerson Network power: SiteLink-2E
Unit is new but was used for testing, was never installed, like new condition with original metal enclosure. This is a new 16mb memory module that can hold a ton of Bacnet or Modbus programs and because it includes an ethernet port it can take the place of the old SiteGate/SiteLink pair that used to be required to get communication on your network. This module can also serve as a Arcnet gateway for other Arcnet modules that don't have a network port so this really is much more than just two IGM ports.
Manufacturer specification guide
5 PRGs loaded. 5 PRGs running.
Firmware sections in flash memory
SITELINK-e - v2.12:003 Nov 01 2007
System error message history: Type Specific
PRG database corrupt on startup. 07/20/09 09:26:55
Clock changed from 07/20/09 10:28:04 to 07/20/09 08:28:00
Clock changed from 07/20/09 09:27:53 to 07/20/09 10:27:53
RESET: BACnet reinitialize warmstart 07/20/09 09:27:48
Module formatted. PRG database cleared. 07/20/09 09:26:55
Reset counters cleared. -/-/- -:-:-
Message log cleared. -/-/- -:-:-
ARC156 reconfigurations during the last hour (cleared upon reset):
Total ....................... 3
Initiated by this node ...... 2
Type=146, board=36, manufactured on 01/24/2008, S/N 2007C0281N
RAM: 16384 kBytes; FLASH: 8192 kBytes, type = 4
Type=146, board=70, manufactured on 01/24/2008, S/N SL2810018N
Database size = 12582626 , used = 681838, free = 11900788.
Raw physical switches = 02B00000 00000000
Ethernet MAC address = 00-E0-C9-20-02-A3
Current IP Address = 192.168.168.2
Current Subnet Mask = 255.255.255.0
Current Gateway Addr = 192.168.168.254
Assigned IP Address = 10.2.1.220
Assigned Subnet Mask = 255.255.255.0
Assigned Gateway Addr = 10.2.1.1
