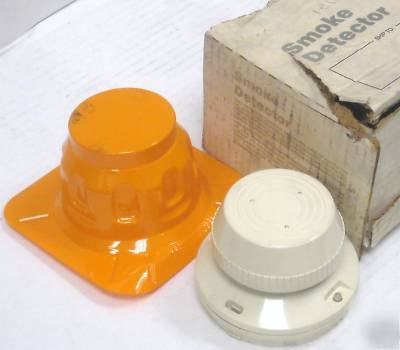

Honeywell notifier C58-163-03 cpx-551A smoke detector
This listing is for a smoke detector.
* Make: Honeywell / Notifier
* Model / Part # 1: CPX-551-A (CPX551-A) (CPX-551A) (CPX551A)
* Model / Part # 2: C58-163-03 (C58163-03) (C58-16303) (C5816303)
* Description: Smoke Detector / Alarm
CPX-751 and SDX-751, Low-Profile Intelligent Plug-in Smoke Detectors
Section: Intelligent/Addressable Devices
The NOTIFIER SDX-751 (photo) and CPX-751 (ion) are analog, addressable, low-profile (height measures only 1.66"/ 42.164 mm) smoke detectors designed for the NFS-3030, AM2020, AFP1010, NFS-640, AFP-400, AFP-300, AFP-200, and System 5000 (when equipped with an AIM-200 module).
Because the SDX-751 and CPX-751 are addressable, the control panel can provide fire fighters with a pinpoint description of where the fire is located. The SDX-751 and CPX-751 are also analog devices. The control panel is capable of not only knowing the detector s location but exactly how much smoke is in the chamber of the detector. The detector may be set for different sensitivity settings appropriate to the environment of its location.
Analog devices continually send obscuration values to the control panel. These values may be gathered so as to allow the control panel to determine if a detector has accumulated an excessive amount of dirt or dust. A maintenance required indication allows the installer to clean the smoke detector before an unwanted false alarm occurs.
The CPX-751 Intelligent Ionization Sensor incorporates a unique single-source chamber design to respond quickly and dependably to a broad range of fires.
The SDX-751 Intelligent Photoelectric Sensor s unique optical sensing chamber is designed with superior signal to noise ratio. The optical chamber is engineered to sense the presence of smoke produced by a wide range of combustion sources.
* Sleek, low-profile design (height only 1.66"/42.164 mm).
* Common base for both photo and ion detectors.
* Compatible with current SDX-551 and CPX-551.
* Addressable-analog communication.
* Stable communication technique with noise immunity.
* Rotary decade 01 to 99 address switches.
* Optional remote, single-gang LED accessory (RA400Z).
* Dual LED design provides 360 viewing angle.
* Visible LEDs blink every time the detector is addressed, and illuminate steady on alarm (LED blink is optional on the NFS-3030, AM2020, AFP1010, NFS-640, AFP-400, AFP-300 and AFP-200).
* Built-in functional test switch activated by external magnet.
* Optional relay, isolator, or sounder bases.
* Size: 1.66" (42.164 mm) high x 4.1" (104.140 mm) dia.
* Operating temperature: 0 C to 49 C (32 F to 120 F).
* UL listed velocity range: ION: 0 1500 fpm. PHOTO: 0 4000 fpm.
* Relative humidity: 10% 93% non-condensing.
* Voltage range: 15 32 volts DC peak.
* Standby current ION: 200 A @ 24 VDC (without communication); 300 A @ 24 VDC (one communication every 5 seconds with LED enabled).
* Standby current PHOTO: 230 A @ 24 VDC (without communication); 330 A @ 24 VDC (one communication every 5 seconds with LED enabled).
* LED current (maximum): 6.5 mA @ 24 VDC ( ON ).
Notifier's online product brochure is located at http:// /products/datasheets/DN_7086.pdf
