New esr meter - capacitance capacitor tester in circuit

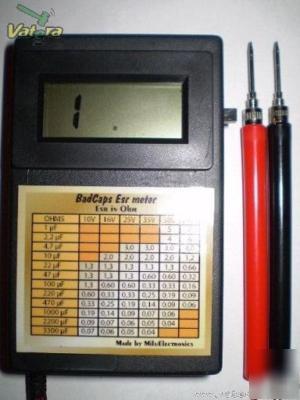

My esr meter made MiluElektronics @ October 1, 2009 | COPYRIGHT 2009 Nelson Publishing. This material is published under license from the publisher through the Gale Group, Farmington Hills, Michigan. All inquiries regarding rights should be directed to the Gale Group. (Hide copyright information) Copyright !!!
The ESR value depends on the capacitor value and voltage rating. But generally speaking, if the ESR is less than one ohm, the Cap is good, if big than ten Ohms, the Cap is bad. We have detailed reference data chart in our instruction manual. And furthermore, you do not need to remove the capacitor from circuits. The reason for this function is that the output test signal of ESR meter is only 16mvp-p and it will not active any solid devices. In addition, the low ohm feature of ESR Meter can eliminate the effect caused by the components parallel with the capacitor under testing. And thanks for this feature that enables ESR Meter to be used in circuit.
Any Occupations can benefit from using ESR Capacitor Meter. Such as LCD and Plasma TV repair, digital Camcorder and camera, compute Motherboard, switching power supplies, audio amplifiers, medical electronics, electric motor and etc.
* Measurement range: 0.01 to 19.99 ohms, auto-ranging.
* Update speed: 4 readings/second. !!!!!!!
* Power supply: 9 volt battery (not included).
* Dimensions: 115x70x30 milimeter
* Tests electrolytics in circuit, & test leads are non-polarized.
* Test lead resistance compensation.
* Easy-to-read, 50x20 LCD display.
* 100 kHz output Test Frequency using a low 15 mV peak-to-peak output test voltage.
