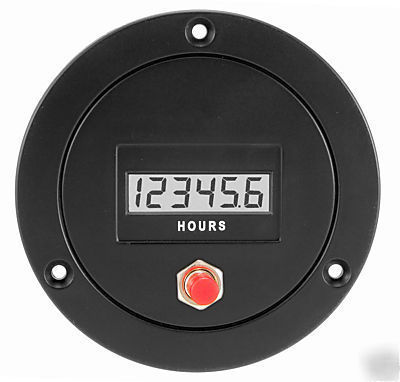

Model 33 electronic lcd hour meter, manual reset
The Redington Model 33 line of LCD hour meters provides a large display, 7mm high figures, in the industry size housings. The hour meters are available in a variety of mountings: 2-hole rectangular, 3-hole round, flush-round and flush-rectangular. Voltage operating ranges are 10-277 VDC and 20-277VAC 50/60Hz. All models are totally sealed from moisture and dirt and conform to NEMA 4 and 4X specifications when mounted with the optional gasket. The Model 3311-1020 is not NEMA 4 & 4X rated. Their rugged construction makes them ideal replacements for current hour meters. Units have polarized LCD for high visibility in sunlight.
Termination: 0.250 inch (6.4 mm) spades
Display: LCD with large 0.28 inch (7 mm) high figures, black on light background
Run Indicator: Blinking Decimal Point
Quartz Accuracy: 0.02% over entire voltage and temperature
Operating Temperature: -40 to +185 F
Operating Temperature: -40 to +85 C

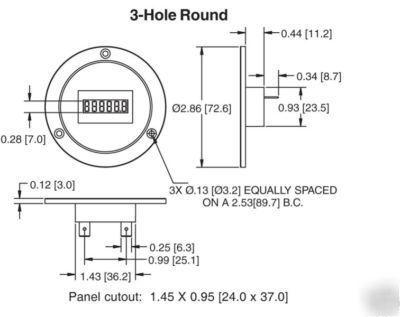

Panel Cutout: 1.45 x 0.95 Inch
Sealing: Not NEMA 4 & 4X rated
Approvals: CE compliant, UL/cUL recognized (file No. ELIY2.E36690)
Protection Against: Alternator load dump: 150V EMI (Electromagnetic Interference): +400V
Case Material: Polymer (black)
SubCategory: Electronic Hour Meters
Reset Type: Manual Reset - front push button
