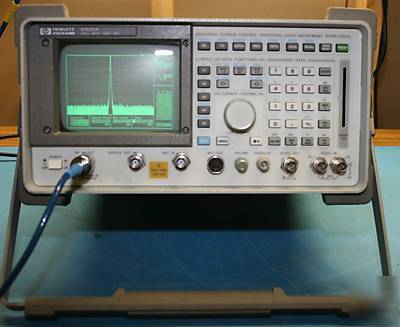

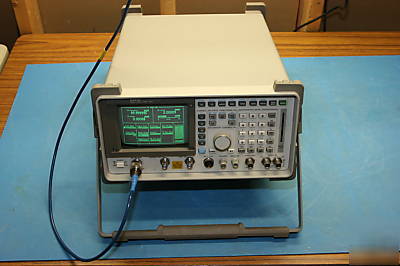

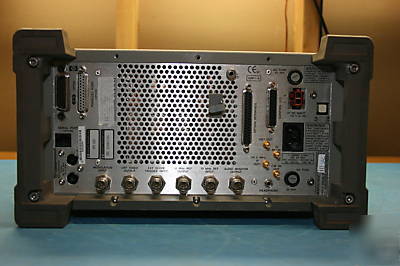

Hp agilent 8921A service monitor -calibrated-
HP Agilent 8921A Service Monitor 300 Khz 1Ghz
The HP Agilent 8921A is a used Cell Site Test Set. The Agilent HP 8921A is a highly-portable, integrated solution for the installation and maintenance. 250kHz-1GHz. Audio generator: DC-25kHz. RF Frequency Measurement range: 400kHz -1GHz. AF frequency measurement range: 20Hz-400kHz.AM/FM signal generator
* RF frequency counter/frequency error meter
* Two variable AF generators
* Built-in IBASIC controller
* Spectrum analyzer and tracking generator
* HP-IB/RS-232 remote interface
Accuracy and Stability: Same as reference oscillator 0.015 Hz
Range: -137 to -19 dBm into 50W (RF in/out)
-127 to +7 dBm into 50W (duplex out)
Level Accuracy: 1.9 dB (RF in/out)
Typical 1.0 dB for all levels
FM Deviation: 100 kHz, 0.25 to 250 MHz
(Rates >25 Hz) 50 kHz; 250 to 500 MHz
AM Rate: 20 Hz to 25 kHz (3 dB BW)
AM Accuracy: 10% AM: 5% of setting 1.0% AM
> 10% AM: 5% of setting 1.5% AM
Output Level Range: 0.1 mV to 4 V rms
Measurement Range: 400 kHz to 1 GHz
Accuracy: 1 Hz plus timebase accuracy
Measurement Range: 1 mW to 60 W continouse
Accuracy: 5% of reading resolution
Frequency Range: 5 to 1000 MHz
Sensitivity: 2 mV (typical < 1 mV)
Accuracy: 4% of reading plus residule FM and noice contribution
Frequency Range: 10 to 1000 MHz
Accuracy: 5% of reading 1.5% AM
Frequency Range: 400 kHz to 1 GHz
Bandwidth (3 dB): 20 Hz to 70 kHz
Measurement Range: 20 Hz to 400 kHz
Accuracy: 0.02% plus resolution plus reference oacillator accuracy
AC Accuracy: 3% of reading 150 mV rms
DC Accuracy: 1.0% of rading 45 mV
Input Impedance: Switchable between 600W and 1 MW
Fundamental Frequency: 1 kHz 5 Hz
Distortion Range: 0.1% to 100%
Accuracy: 1 dB (0.5 to 100% distortion)
Accuracy: 1 dB (0 to 46 dB SINAD)
Bandwidth (3 dB): 2 Hz to 50 kHz
Time/Division: 10 ms to 100 ms
Frequency Span/Resolution Bandwidth (coupled):
Frequency Offset: Frequency span endpoints frequency offset
cannot be < 400 kHz or > 1 GHz
Output Level Range: Same as signal generator
Sweep Modes: Normal and inverted
Measurement Range: 0 to 10 A (usable to 15 A)
Accuracy: The grater of: 10% of reading or 30 mA
