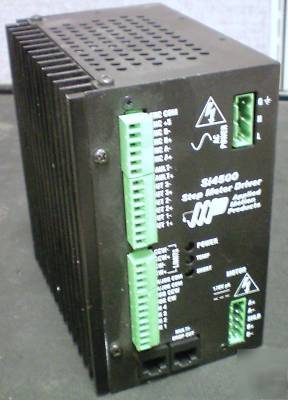

Applied motion products step motor driver SI4500
Appplied Motion Products Step Motor Driver Model: Si4500
Powerful, precise and efficient MOSFET driver providing up to 4.5 amps per phase and microstepping to 50,800 steps per revolution.
Reliable, efficient, 160 VDC offline power supply.
Powerful, flexible, easy to use indexer.
Automatic anti-resonance and electronic damping circuitry.
Connects by a simple cable to your PC for programming (cable included).
Microsoft WindowsTM-based software for easy set up and programming.
Eight inputs for interacting with the user and other equipment.
Three outputs for coordinating external equipment.
Encoder input allows end of move verification and position maintenance.
Accepts 110 volts, 50/60Hz AC power.
Sturdy 3.7 x 6 x 5.3 inch metal case with integral heat sink.
I/O is optically isolated, 5-24 V, sinking or sourcing signals. PC/MMI port is RS-232, but will also accept SiNetTM Command Language (SCL) commands in RS-232 or RS-485.
Multiple Si4500 and 3540i drives can be combined into a single network by RS- 485 multi-dropping or the SiNetTM Hub system.
Pluggable screw terminal connectors for I/O, motor and AC power
Three LEDs indicate power, drive and indexer status.
Overcurrent (short circuit) and over temperature protection.
Optional man machine interface (MMI) allows operator to enter distances, speeds, cycle counts and more.
