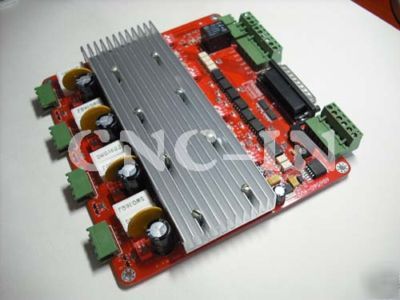

4 Axis CNC Router Mill Stepper Motor Driver Board 6560
CNC stepper motor driver board 96560A V1 adopts the new chip TB6560AHQ of TOSHIBA, the max ouput current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.
The advantages of the TB6560AHQ chip
* The vibration of the motor is small and low noise: because of the 2/8/16 resolution can satisfy the different speed.
* Flush type low heat The area of the chip can support itself to cool when the current is low
* Supports a lot of stepper motors
* The advantages in the high-speed running condition
* 4-wire 0-3.5A normally 3A , the 3.5A is the peak current can be regulated rate current output, bipolar stepper motor driver
* Standard parallel port , supports Mach 2, KCAM 4 etc.
* Optical isolated (IO) and DCDC power isolated to protect the PC parallel port and other equipments
* Limit and emergency stop port ( standard DB9 port)
* 4 working modes: mixed mode , fast mode, slow mode, standard mode
* 4-resolution : 1 1/2 1/4 1/16
* 12-36V single power input uses the switch power chip as the 5V power supply, stable and low heat
* Adopts RC + 7414 auto semi-flow
* The relay output can control the main axis
* 5th axis extension control port
