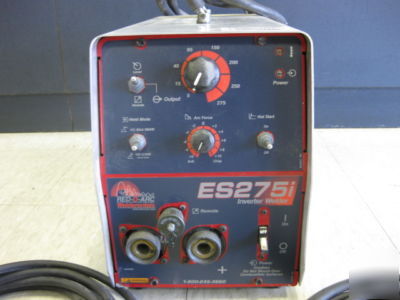

Used red-d-arc/lincoln es 275I welder runs on 230 volt


Stick, DC TIG with Touch-Start
Built to Red-D-Arc Extreme-Duty Specifications
275 amp @35% duty cycle, constant current, DC, inverter welder with both single- and three-phase, 50/60 Hz voltage input. Outstanding E6010 and E7018 performance using up to 7/32 diameter electrodes that enables both whip or drag techniques. Standard features include Hot Start, adjustable Arc Force, full Remote Control capability and Extreme-Duty construction. Tweco-style output terminals. No single-phase derating. Potentiometer-type 3-pin MS-style remote control. Manufactured under ISO 9001 certification.
DC Amperage Range: 5 - 275 A Stick/TIG
Rated CC Output: 200 A at 28 VDC, 100% duty cycle
250 A at 30 VDC, 60% duty cycle
275 A at 31 VDC, 35% duty cycle
Voltage Input: 208/230/460/575/1/3/60,
H: 13.6" (345 mm) W: 9.0" (229 mm) L: 20.25" (514 mm)
Available Options and Accessories
RC1 remote control, 4Pak and 8Pak multioperator system
The ES275 is an excellent choice at for home or business. At only 54lbs it offers excellent portability and rugged industrial quality construction not found on any other product in its size or price range. It offers excellent Arc Characteristics and no single-phase de-rating in output capability. Consider it as an alternative to other models. You may also run this off of your engine drive welder's auxillary power for "dual-op" capability.
This unit has been tested, calibrated and includes a 90 day warranty from Red-D-Arc. It will operate on all voltages listed above as well as, 230 Volt single phase at your home.

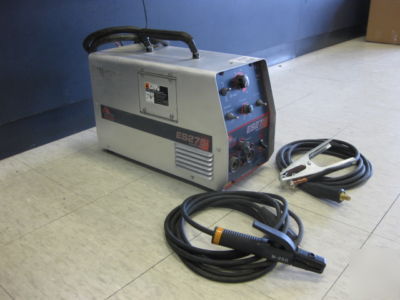

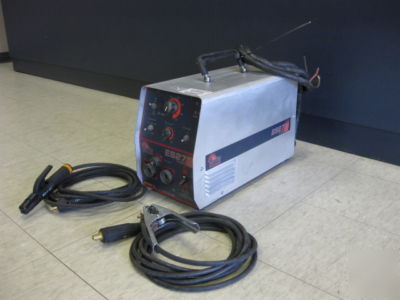

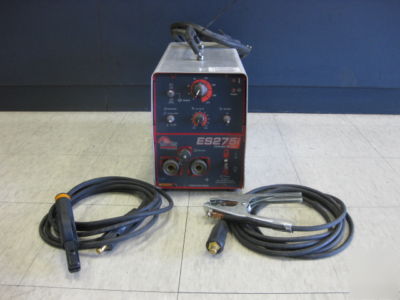

This machine includes a 25FT lead set.
