Konica srx-101 automatic medical film processor x-ray
Automatic Medical Film Processor X-RAY

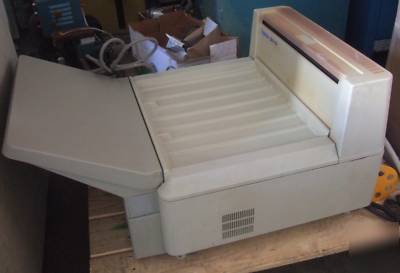

This Konika SRX-101 X-ray processor is in excellent condition.
It is an extremely reliable workhorse and is the standard that other machines are compared to.
Very easy to use and maintain.
This was used in a veterinary hospital.
Sheet film, 10x10cm up to 14x17" (35x43cm)
Available by a service engineer
Dev tank: 3.9 liters (1.03 gal.)
Fix tank: 1.8 liters (0.47 gal.)
Wash tank: 1.4 liters (0.37 gal.)
Continuous pumping of developer and fixer solutions
Processing solution temperature: controlled by the temperature control tank, with the thermistor monitoring, and with the heater heating.
Drying temperature: controlled automatically according to a fixed temperature setting.
Teplenishing volume for the film sheet is calculated with exchanging 10x12" film
Ordinary tap water 41-86 F (5-30 C)
Water pressure 49-686kPa (0.5-7kgf/cm ) (7-98psi)
10min./30min./Continuous operation. (selectable by a service engineer)

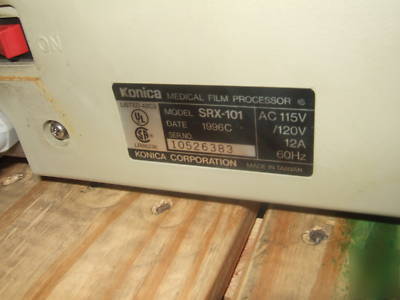

AC 115/120V, single phase, 12A, 60 Hz.
88 Lbs./40kg (103.4Lb./47kg with processing solutions)
59-86 F (15-30 C), 30-75%RH (no condensation)
Measuring cup, funnel, installation parts kit, replacement parts kit, replenisher tanks, and operation manual
Light shield panel, stand, splash gua
