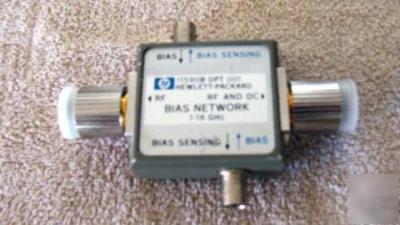

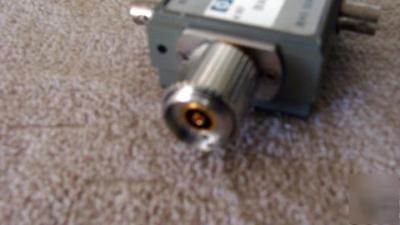

Hp - agilent 11590B 1-18 ghz bias network w/opt
The HP Agilent 11590B broadband high power bias networks can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.
FEATURES and SPECS: *** Frequency range: 100 MHz to 12.4 GHz (optional 001 to 18 GHz) *** Insertion loss (dB): 0.8 (1.2, 12.4 - 18 GHz *** Maximum SWR: 1.25 (1.5, 12.4 - 18 GHz) *** Impedance: 50 ohms # RF power: +24 dBm max *** Bias current: 500 mA # Bias voltage: 100 V *** Connectors: RF input-Type N (f), RF output-Type N (f), dc bias-BNC (f) or APC-7 w/ option 001.
I HAVE THE HP - AGILENT 11858A ADAPTER AND HP - AGILENT 11602B FIXTURE.
My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html
