> Heidelberg prosetter 52 - 20" x 26" plate + rip + nice

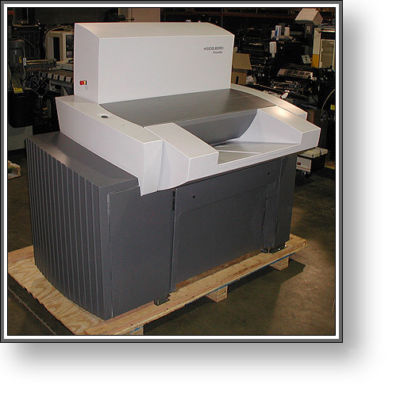

Heidelberg prosetter 52 - 20" x 26" plate + rip + nice
* Manufacturer: Heidelberg
* Serial Number: 054040806
* Manufacture Date: May 2005
* This machine is in great condition. It is the newest ProSetter we've ever had come through our doors. It will make the new owner very happy!
* Over 13 years of experience in internal drum imaging has enabled Heidelberg to develop the Prosetter range, a generation of violet platesetters with outstanding quality and reliability. The internal drum architecture delivers the precision that you have come to expect from Heidelberg. In all the Prosetter models, the printing plate is precisely aligned in a half shell and held in place by a vacuum during imaging. The laser is moved along this half shell and images the plate one dot at a time. The laser spot is guided via a rotating prism, delivering precision down to thousandths of a millimeter. This is made possible by the air bearing, which is frictionless. Fitting the Prosetter with an SCL or MCL makes it even more user-friendly and reliable. Operator intervention is reduced to a minimum and you can produce nonstop for many hours.
* Prinect Metadimension 7.54
* CPSI RIP for a two up device with CIP4
* Colorproof Pro CPSI 53
* Imposition Editor 1.3 Fixed
* Software, Dongle, and Interface Board Included!
* Note: One of the panels got a little damaged in transportation. The damage does not effect the operation of the machine.
* Cassette Carriage: Heidelberg has developed its own cassette carriage for transporting plates easily from the storage area to the platesetter site and for user-friendly filling of the loaders.
* Plate on Demand: The Prosetter can be integrated effortlessly into a workflow featuring the Prinect CP2000 Center.
* Temperature Compensation: If a single color separation requires post-imaging work, even tiny temperature fluctuations can cause registration problems - but not with a Prosetter.
* Integrated Filter System: To prevent dust being deposited in the Prosetter, there is always a slight overpressure in the unit.
* Plate Types: The Prosetter allows you to choose freely whether you wish to use silver halide or photopolymer plates.
* Integrated Punching Systems: The Prosetter works with absolute register accuracy.
* Min.: 14.57 x 12.67 in
* Max.: 20.66 x 26.37 in
* Violet laser diode; 405 nm, 60 mW (can be set to 5 mW for silver halide plates), Laser Product Class 1
* 0.15-0.30 mm (0.006-0.012 in)
* 2,400/2,540/3,386 dpi
* 5 m for four successive imagings, relative to the punch position at 23 C (73.4 F) und 60% relative humidity; 25 m relative to the plate edge
* Up to 20 plates per hours at 2,540 dpi
* Operating temperature: 18 C to 28 C (64.4 F to 82.4 F); 45% to 80% relative humidity (non-condensing). Please contact the media supplier for exact environmental and operating conditions for the printing plates.
* Power Consumption: 0.7 kW
