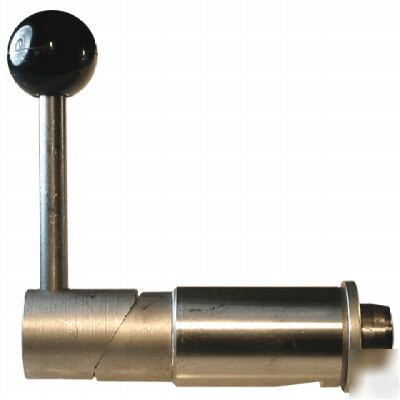

Carr lane tapered index plunger cl-22016-tip 1/2"
Carr Lane Equivalent. TAPERED INDEX PLUNGERS ROTARY CAM STANDARD MOUNT (USA)
FEATURES: Index plungers are precision, heavy-duty assemblies with a retractable spring-loaded plunger.
Tapered Index Plungers feature a 15 taper on the plunger tip. The taper makes alignment easier and also eliminates any binding during retraction.
The rotary-cam version completely retracts when the handle is rotated 180 . Cam surfaces are hardened steel.
The standard-mount configuration shown here has an Un-Ground Body. TAPERED INDEX BUSHING NOT INCLUDED.
MATERIAL: Plunger, body, and cam > 1144 steel, heat treated Rc 50-55.
Center shaft > 11L44 steel. Spring > Music wire.
Ball knob > Black phenolic plastic with molded-in brass insert.

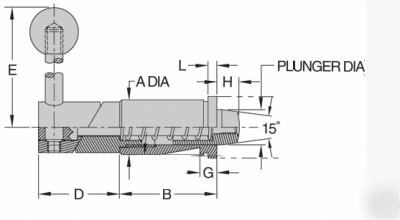

***Use Photo #2 along with Chart below for Dimensions of this Item***
