Victaulic no.10 6" grooved ips pipe fitting 90 deg

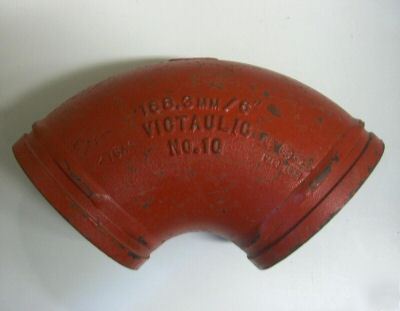

VICTAULIC No.10 (6") GROOVED IPS PIPE FITTING 90 ELBOW
NEW ITEM WITHOUT ORIGINAL BOX!!!!!!! 90 DAYS WARRANTY!!
DESCRIPTION: No.10 (6") GROOVED IPS PIPE FITTING 90 ELBOW.
All Victaulic fittings are supplied with grooves or shoulders to permit fast installation without field preparation. The grooved design permits flexibility for easy alignment.
Victaulic standard fittings' pressure ratings conform to the ratings of Victaulic Style 77 couplings.
Ductile iron conforming to ASTM A-536, grade 65-45-12.
Or: Segmentally welded steel as shown under nipples
* 3/4 - 4"/20 - 100 mm: Carbon steel, Schedule 40, conforming to ASTM A-53, Type F
* 5 - 6"/125 - 150 mm: Carbon steel, Schedule 40, conforming to ASTM A-53, Type E or S, Gr. B
* 8 - 12"/200 - 300 mm: Carbon steel, Schedule 30 or 40, conforming to ASTM A-53, Type E or S,Gr. B
* Class 125 Flange: Cast iron conforming to ANSI B-16.1
* Class 150 Flange: Carbon steel conforming to ANSI B-16.5, raised or flat face
* Class 300 Flange: Carbon steel conforming to ANSI B-16.5, raised or flat face
http:// /docs/lit/07.01.pdf
