Us industrial machinery hyrdaulic cnc shear w backgauge

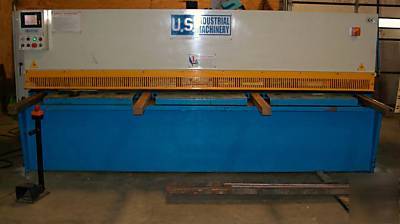

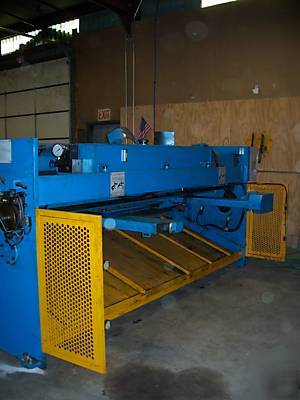

ONE (1) USED 2006 U.S. INDUSTRIAL 10 X 1/4 HYDRAULIC SHEAR
Model Number: US1025CE Serial Number: G2005-002
(All standard and optional below comes with the machine)
Squaring Arm Bolt on table segments qty of 3
High Carbon, High Chrome Shear Blades Hold-downs faced w/anti-mar neoprene
Manual Quick Change Blade gap adj. Pressure Sensing Hold downs
Automatic Swing-up on back gauge
Shearing Capacity 1/4 Mild Steel @ 65000 PSI
Adjustment Range Of Back Gauge 0.75 -36
Hydraulic Oil Capacity 71 Gal.
Dimensions (L x W x H) 157 x 63 x 63
U.S. Industrial 10 x 1/4 continued -

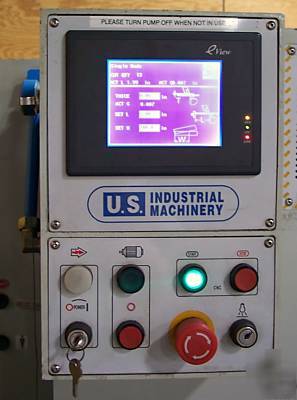

3-Axis CNC Programmable Back Gauge ORIGINAL PRICE $ 4,990.00
* Touch-screen operated. Controls back gauge depth, blade gap
and stroke length 200 program storage capacity, Can be operated
Pneumatic Sheet Support ORIGINAL PRICE $ 3,990.00
Material Support/Drop Chute ORIGINAL PRICE $ 995.00
Front & Rear Protection Guards ORIGIANL PRICE $ 995.00
