Plans-turret fits logan lathe-south bend-atlas-myford

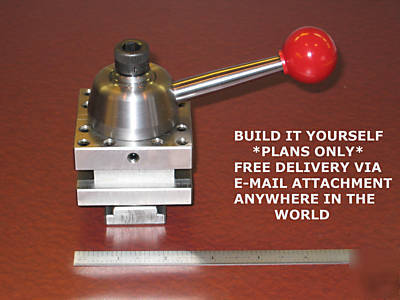

PLANS TO BUILD YOUR OWN 2-1/2" TURRET TOOL POST IN PDF FORMAT

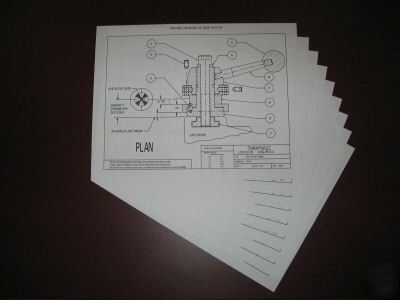

COMPLETE PLANS and CONSTRUCTION MANUAL for building an industrial quality TURRET TOOL POST for your lathe.
This quality "AMERICAN DESIGNED" turret tool post plan is for the "FULL SIZE 2-1/2" SQUARE" turret tool post and is recommended for all lathes from 9" swing and up.
* 12 position positive indexing with detents (indexes every 30 degrees)
* Optional 24 position indexing with detents (indexes every 15 degrees)
* Customizable to fit any lathe (.813" minimum vertical center distance required from the centeline of lathe headstock to top of compound cross slide)
* 2-1/2" square turret tool post holds (4) tool bits (tool slot size is 1/2")
* Robust construction, repeatable, rigid, smooth and positive operation
* Saves set up time on the lathe
* All components fully detailed
* A fun lathe project that results in a useful tool that you can be proud of
* Free fast delivery via e-mail attachment anywhere in the World
Watch Video of Turret Tool Post in Action
http:// /watch?v=NB3CvBFEbP0
Prints And Instructions Are "Top Shelf"!!!! Very Professional!!!!! AAA+++
Another nice design with clear prints and great instructions! Thanks Dick!! A+
PLANS ONLY-TURRET NOT INCLUDED
