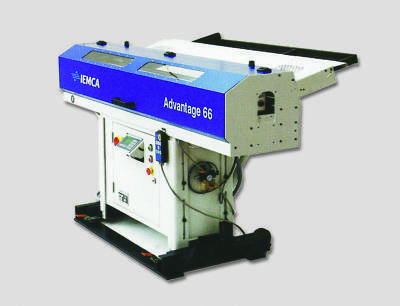

New brand , iemca advantage 66 short load barfeed
Automate your production process with a BRAND NEW high quality bar load from IEMCA - A world leader in barfeeding technology
Features / Standard Equipment / Information
* Bar Diameter Capacity 5 mm to 66 mm (.196" to 2.598")
* Bar Length Capacity 59" (Lathe spindle length determines max working bar length)
* Random lengths acceptable (15" min to 59" max)
* Magazine Tray Capacity 23.5"
* Example - (23 x 1" bars x Machine spindle length = lineal footage of material for operation) ( if lathe spindle length is 4 than 92 of bar is available on rack)
* No special material straightness requirements, lathe rpm can be optimized
* Easy manual adjustment of centerline height scale calibrated in mm and inches
* Soft load material introduction (5 urethane bumpers above v-channel)
* Mitsubishi/Shihlin PLC controller powerful and operator friendly
* Machine mounted keyboard display
* Touch screen digital control
* Multi language selectable display
* Function display Settings display Parts counter - + additional readouts
* Remote control pendant with cable for operator use at machine
* Rotary Encoder measurement
* Pneumatic operation (Feeds to turret stop)
* Separate adjustable air regulator for material pre-feed and pusher
* 80-100 PSI required thru main regulator and oiler
* 3 bar pushers included (6 mm / 12mm / 20mm) storage bracket under material tray
* X axis (F to B) axial track with 20" movement-Pivoting tray incline adjustable
* Floor foot print 75" X 42"
600 mm (23.5") or 10 bars (2.362")
RAL 5002 Blue, RAL 7035 Light Gray
