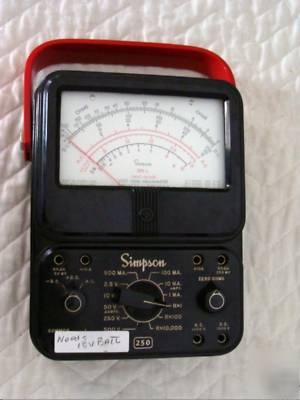

Simpson 250-l volt-ohm-millammeter
SPECFICATIONS: DC VOLTAGE: *** Ranges: 50mV, 250mV, 2.5V, 10V, 50V, 250V, 500V, 1000V *** Accuracy 2% of full scale * Sensitivity 20K per volt AC VOLTAGE: *** Ranges 2.5V, 10V, 50V, 250V, 500V, 1000V *** Accuracy 3% of full scale * Sensitivity 5K per volt *** Rated Circuit-To-Ground Voltage 1000V (AC or DC) max. DC CURRENT: *** Ranges 50 A, 1mA, 10mA, l00mA, 500mA, 10A *** Accuracy 1% full scale 5O A, 250 A * 2.0% of full scale on all other ranges *** Voltage Drop: (Nominal) 250mV or 50 mV on 50 A *** Voltage Drop: 50mV on 1mA, 10mA, 100mA, 500mA RESISTANCE: Ranges Rx 1, Rx 100, Rx 10K *** Accuracy 2.5 of arc on Rx1, 2.0 of arc on other *** Maximum Indication 0-2K , 0-200 , 0-20M
