New shop fox® M1016 10" x 20" metal lathe ( in box)

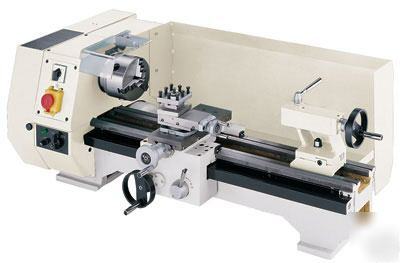

Shop Fox M1016 10" x 20" Metal Lathe
M1016 - SHOP FOX 10" X 20" Metal Lathe
An excellent small-sized lathe with an impressive 9-3/4" swing and 21" distance between centers, the Model M1016 offers handy accessories like 5" 3-jaw chuck, eye shield, and 4-way turret tool post.
* Forward/reverse switch with emergency stop
* Lathe motor size: 3/4 HP, 110V, single-phase
* Swing over cross slide: 6"
* Distance between centers: 21"
* Tailstock barrel travel: 1/2"
* Cross slide travel: 4-1/4"
* Lathe speeds: 150, 240, 490, 750, 1200, 2400 RPM
* Range of threads (inches): 8 TPI - 40 TPI in 12 steps (Gear changes required)
* Range of threads (metric): 12 @ 0.4 - 3.0mm
