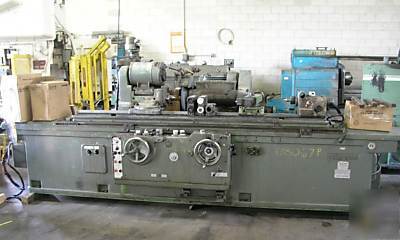

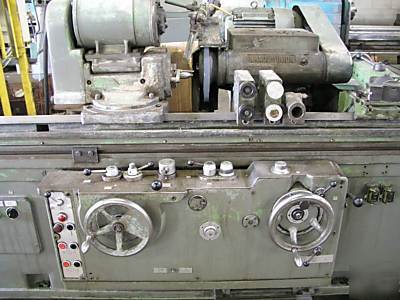

Naxos union universal grinder, 13†x 64â€, 1967
Naxos Union Universal Grinder, 13 x 64
Maximum Work Piece Swing: 13-1/4" Diameter
Maximum Distance Between Centers: 64"
(3) Wheel Head Speeds Via V-Belt Step Pulley Drive
Recommended Wheel Size: 8" - 15-3/4" with 5" Bore
Wheel Head Swivels Up to ? Degrees in One Direction Only
Table Swivels: 5 Degrees Each Way
Table Mounted Swiveling Wheel Dresser - Manual with Bar & Diamond
Standard Tailstock with Quick Acting Quill & Dead Center
Table Mounted Straight Wheel Dresser - No Dresser Bar or Diamond
Swiveling Type Motorized Workhead with Dead Center
Variable Hydraulic Table Feeds & Infeed Control
Wired for 3 Phase, 60 Cycle, 440 Volts
(2) Adjustable Table Mounted Work Supports
(2) Adjustable Table Traverse Stops
Separate Coolant Pump & Tank with Filter System
Free Standing Electric Cabinet
Main Machine: 172" L-R x 63" F-B x 56" H x Approx. 10,000 Lbs.
Coolant Tank: 26" L-R x 40" F-B x 24" H x Approx. 250 Lbs.
Hydraulic Tank: 23" L-R x 44" F-B x 23" H x Approx. 400 Lbs.
Electric Panel: 37" L-R x 19" F-B x 69" H x Approx. 300 Lbs.
