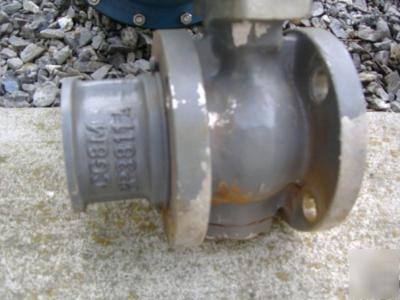

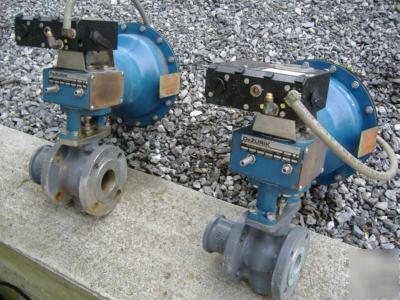

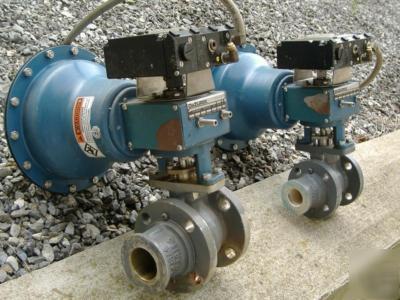

Dezurik 2" s/s vport ball valve, pneumatic actuator
DeZurik 2" VPB,2,F1L,S3,TC,S3NH-S10-S3-FT*DR-40A-R
* DeZurik 2" V-Port ball valve,
* Class 150, ANSI B16.10 flanged ends,

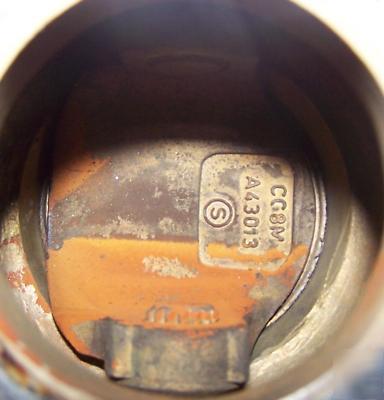

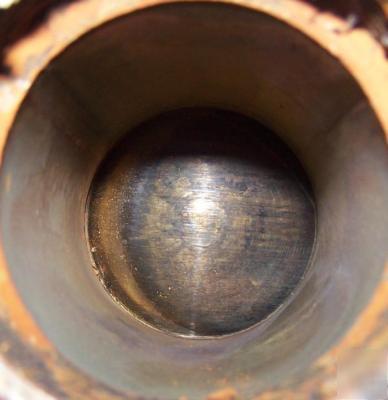

* 317 SS heat treated ball with nickel overlay,
* 2205 Duplex stainless steel shaft,
* flexible 317 stainless steel seat with heat treated electroless nickel overlay,
* 317 SS bearings with wire mesh encapsulated PTFE liner,
* Diaphragm Rotary pneumatic actuator,
* diaphragm size: 40 Sq. In.,
* spring action: reverse acting (air-to-open, spring-to-close),
* (Note: PMV positioner has been removed) .
This valve is in excellent condition.
