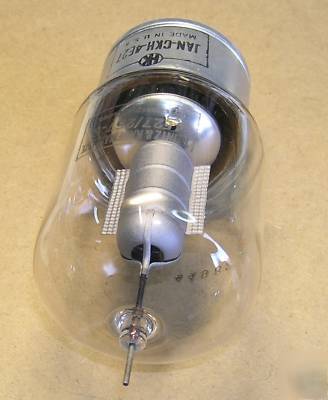

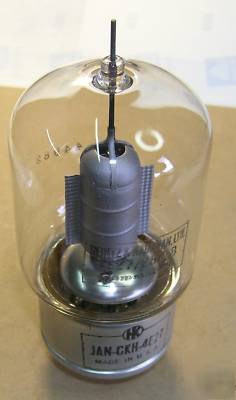

4E27/8001 transmitting beam power pendode amplifier

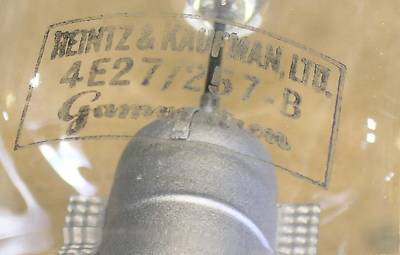

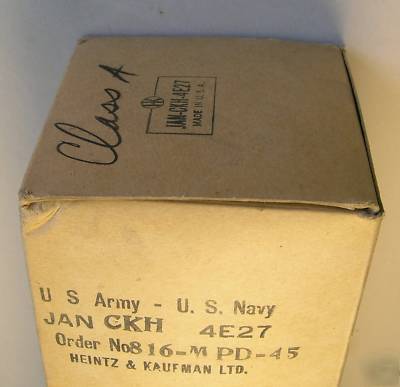

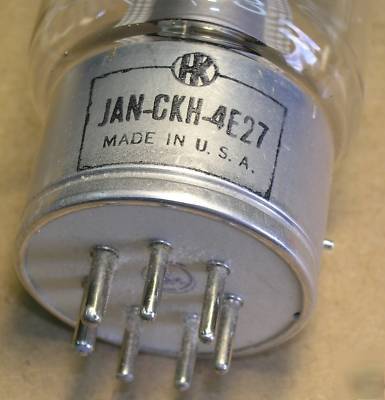

This power tube can deliver 200 watts(class C plate modulated), plate voltage 2500 v and 145 watts with 1500 volts and driving power 0.1 watts. 75 MHz operation for full service,usable to 150 MHz. Great for modulator/audio amplifier applications as well,will deliver 34 watts for class A1 operation and 1000 volts plate voltage.Uses giant 7 pin bayonet base.This particular stock was made by Heintz & Kaufman Ltd (USA).
