Uniop operator interface (CP04F-04-0045)

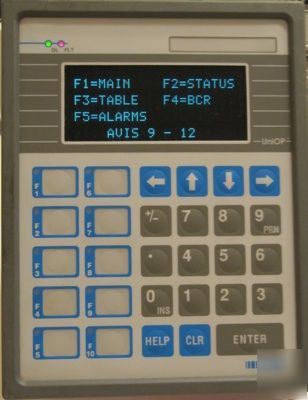

UniOP Operator Interface (CP04F-04-0045)
The CP04F-04 fulfills the need for a powerful yet cost effective operator interface system. The display is a four line VFD. Each line can contain up to 20 characters. Each page can contain up to 32 lines, which can be accessed by scrolling with the arrow keys. Brightness control is provided to adjust the display for easy viewing under nearly any condition.
PLC internal variables can be shown on any of the many display pages. The number of variables that can be viewed at one time is limited only by the display size. UniOP also provides scaling (linear conversion) of the displayed data. The final value can then be shown in several useful formats including date, time, decimal, bit, hexadecimal, floating point, and string. Data entry with valid range verification is also available for each data type.
The integral keypad adds 29 programmable keys 10 user LEDs. Slide-in legends make it easy to customize and document the operation of each of the 10 keys that have LEDs. UniOP also features an internal battery-backed real time clock. Time and date information from the clock are periodically updated in the PLC to enable processing based on time-of-day, day-of-week or any other period.
UniOP can monitor and display up to 1024 alarms. Attributes and unique messages for each alarm can be defined. Operator acknowledgment can also be required. The last 256 alarm events detected by the UniOP are retained in an internal event list. This list can be viewed on screen or printed on a serial printer to obtain a permanent record.
A feature that allows you to configure your UniOP Keys to do a variety of functions locally in the UniOP. For example: turning pages, setting attributes, setting LEDs, writing to PLC, going to the alarm list, uploading or downloading a recipe set and many more. This can save many hours of ladder logic programming.
This feature allows you to create a recipe with up to 255 parameter sets for each page of the project file. UniOP has a total of 16K reserved for recipe storage. You can upload or download a parameter set from or to the PLC. Once a parameter set has been downloaded to the PLC, the data contained within the parameter set can be modified.
