Pic, eeprom dip programmer - extension to PICKIT2, ICD2
Product photo (click for view in large resolution)

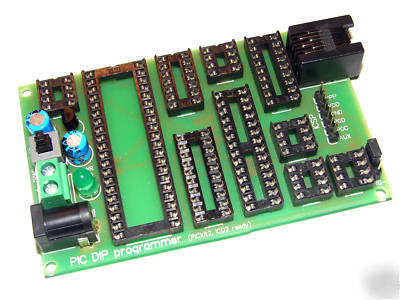

Click for view in large resolution "PIC DIP Programmer"module
Click for view in large resolution ICSP connectors for connecting external programmer to "PIC DIP Programmer"
Click for view in large resolution Power supply connectors (if you need external power supply)
Click for view in large resolution Using of "PIC DIP Programmer" with PICkit2 LITE for programming PIC
Click for view in large resolutionUsing of "PIC DIP Programmer" with ICD2 for programming PIC
PIC DIP Programmer - extension module to PICkit2 for programming PIC controllers in DIP case
Module PIC DIP PROGRAMMER is extension to widely known programmers PICkit2. Iit allows programming Microchip PIC microcontrollers and some types of EEPROM in DIL (DIP) case. Also PIC DIP PROGRAMMER can be used with wide range of PIC programmers (ICD2, PIC JDM and other) for programming PIC controllers.
The module is intended for the developers in which arrangements on a PCB there is no connector ICSP, does not remain free pins of the controller for connecting of the ICSP interface, or these pins cannot be used on what or other reason. The module supports all PIC10/12/16/18 microcontrollers in DIP case and EEPROM 11LC/24LC/25LC/93LC in DIP case (EEPROM only with PICkit2 as external programmer).
6. AUX (used with PICkit2 for programming EEPROM)
1. VPP (first pin have square pad)
Most programmers (PICkit2, ICD2) provide power supply for programmable device, so usually external power supply not needed. However, if necessary, external power supply can be connected to the appropriate connectors of "PIC DIP Programmer". Inputs are protected against reverse polarity. Voltage regulator +5 V 100mA installed in "PIC DIP Programmer", sopossible range of input voltages +5 .. +15 V.
PIC controllers -with any external programmer: all PIC10, PIC12, PIC16, PIC18 controllers in DIP8, DIP14, DIP18, DIP20, DIP28N, DIP40
11LCxx EEPROM - only with PICkit2(LITE, FULL): 11LC010 (AA), 11LC020 (AA), 11LC040 (AA), 11LC080 (AA), 11LC160 (AA)
24LCxx EEPROM - only with PICkit2(LITE, FULL):
24LC00 (AA)(C, 24LC01B (AA), 24LC02B (AA), 24LC04B (AA), 24LC08B (AA), 24LC16B (AA), 24LC32A (AA), 24LC64 (AA)(FC), 24LC128 (AA)(FC), 24LC256 (AA)(FC), 24LC512 (AA)(FC), 24LC1025 (AA)(FC),
25LCxx EEPROM - only with PICkit2(LITE, FULL):
25LC010A (AA), 25LC020A (AA), 25LC040A (AA), 25LC080A (AA), 25LC080B (AA), 25LC160A (AA), 25LC160B (AA), 25LC320A (AA), 25LC640A (AA), 25LC128 (AA), 25LC256 (AA), 25LC512 (AA), 25LC1024 (AA)
93LCxx EEPROM - only with PICkit2(LITE, FULL): 93LC46A/B/C (AA)(-C), 93LC56A/B/C (AA)(-C), 93LC66A/B/C (AA)(-C), 93LC76A/B/C (AA)(-C), 93LC86A/B/C (AA)(-C)
