New sanyo step-syn 103-770-1647 stepping motor step

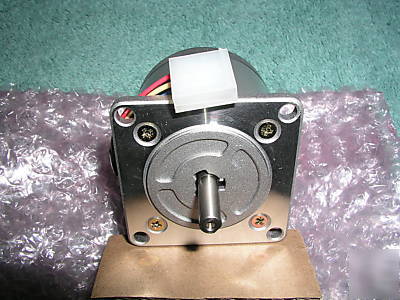

* It appears to be a NEMA 23 Metric Motor. The mounting face measures 56.4 mm square with (4) 5.08 mm diameter mounting holes 47.14 mm apart. The centering diameter is 38.1 mm with a 6.35 mm shaft with flat section. The shaft extends beyond the mounting face by about 20.8 mm. The motor body is 56.4 mm in diameter x 50.8 mm long

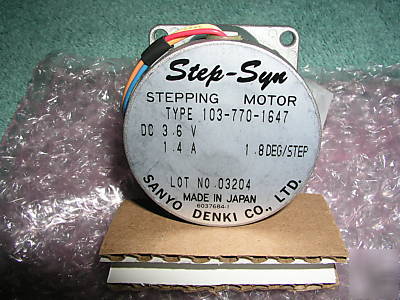

* It is a 1.8 degree/Step Motor, 4-Lead type with in-line connector.
* It is rated for 3.6 Volts, 1.4 Amps
This came in a lot of new spare parts in ESD bubble wrap, so it is spotless.
