Mini-circuits zhl-42 amplifier 700-2400MHZ 30DB +28DBM
Mini-Circuits ZHL-42 Medium High Power Amplifier
Price New from Manufacturer: $895.00
Mini-Circuits ZHL-42 Amplifier Specifications:
* Frequency Range: 700 to 4200 MHz
* VSWR (:1) Max. In/Out: 2.5/2.5
* Maximum Power Output (1 dB Compression): +28 dBm Min.
* Maximum Power Output, Input (No Damage): +5 dBm Min.
* Dynamic Range, NF: 10.0 dB Typ.
* Dynamic Range, IP3: +38 dBm Typ.

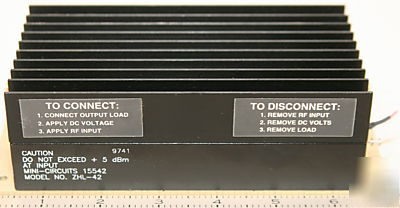

Mini-Circuits ZHL-42 Amplifier
