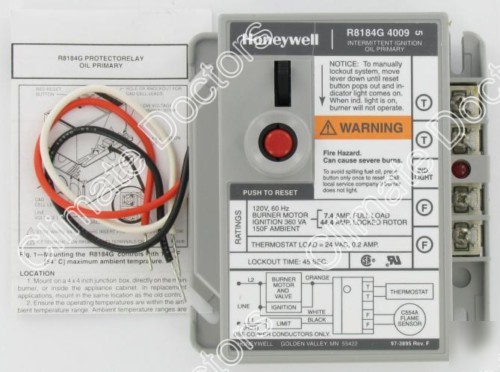

Honeywell R8184G4009 oil burner control, 45 second
Honeywell R8184G4009 Oil Burner Control, 45 Second
Honeywell model R8184G4009 Protectorelay. Low Volt Screw Terminals. Line Voltage Leadwire Connections Intermittent Ignition. 45 Second Safetytiming. 120 volt 60 Hz. Use with C554 cad cell assembly (not included). Mounts On Oil Burner with 4 X4 Junction Box. Tradeline model. .2A Thermstat current. Led light For Lock-Out Indication & Manual Trip switch. 150 Deg F Max Ambient temperature.
Provides automatic, nonrecycling control of an intermittent ignition oil burner system.
Solid state flame sensing circuit.
External button to manually reset safety switch after lockout.
Mounts on standard 4 x 4 in. junction box.
