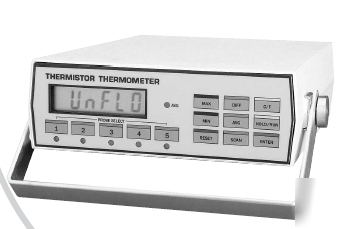

DigiTec Corporation - Model 5831 Thermistor Thermometer
Start With The Features You Expect In A Thermistor
Thermometer: Add a wide range of state-of-the-art, microprocessor-based measurement capabilities, and you have the Model 5830 the clear choice for a variety of applications.
You can set up the instrument for your measurement needs.
The Model 5830 is ideal for both laboratory and field use, and operates from either its standard 115/230 VAC switch selectable wall adapter or an optional rechargeable battery pack.
The instrument utilizes both low-power CMOS circuitry an energy-efficient LCD display to minimize power requirements and optimize reliability.
The 5830 is the only portable thermistor thermometer which offers multiple measurement functions, five input probes, and up to .01 C or .01 F (Model 5831) resolution. The instrument displays five digits of resolution plus sign.
Measurement range is a wide 30 to 100 C (-22 to 212 F).
Accuracy is unsurpassed by any other multi-function portable thermistor thermometer.
DigiTec s SELFCAL autocalibration technique ensures drift-free operation.
Both YSI Series 400 (low-cost single thermistor probe) and Series 700 (dual thermistor linear output probe) are supported via an internal user-selectable switch.
This Thermistor Thermometer is a versatile, highly accurate instrument, perfect for a variety of field or laboratory applications.
An important and unique aspect of the 5830 is the wide range of measurement functions it puts at your fingertips.
Degree C or Degree F Selection:
Select degree C or degree F temperature display at the touch of a key. The selected units of measure are clearly indicated on the large 1/2 inch LCD display.
Multiple Input Probes and Probe Types:
The 5830 is the only portable thermistor thermometer with five probe inputs. Probes may be either Series 400 or Series 700 with standard phone-plug connectors. Many different probe styles are available in each series for specific measurement needs. A simple keystroke selects any probe for display. Bright LED indicators identify selected probes. Probe Scan Mode: The 5830 s unique scan mode sequentially scans a user-definable sequence of input probes and displays each probe s current temperature. The scan mode provides for handsfree measurement and display of two, three, four, or all five probes. The operator can select which probes to scan and the order in which to scan. Each probe is displayed for approximately three seconds for operator monitoring.
To program the scan sequence, simply press SCAN , ENTER , the probe NUMBER keys in the desired sequence, and ENTER . The 5830 will begin to scan the selected probes in the desired sequence.
Multiple input probes uses 400 or 700 Series probes
Degree C or degree F temperature display
User-defined sequential probe scanning
User-selectable single probe display
Temperature display updated 5 times per second
Min/Max temperature storage and display
Multi-probe average temperature measurement
Display hold function freezes displayed data
Non-volatile storage of instrument setup
NUMERICAL PERFORMANCE SPECIFICATIONS
Resolution 5830: 0.1 (C or F)
