Brown & sharpe micromaster hydraulic surface grinder

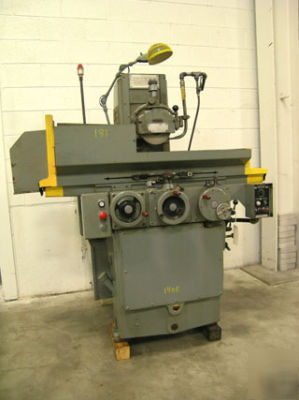

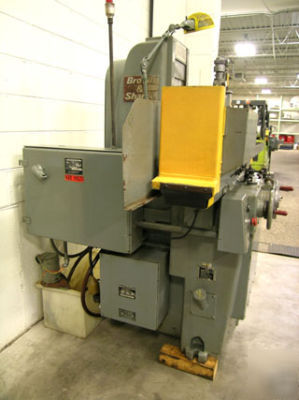

Liberty Machinery Company You are looking at(1) USED - 6" X 18" BROWN & SHARPE MODEL 618H MICROMASTER 3-AXIS HYDRAULIC SURFACE GRINDER* Serial No. 523-6181-5728Condition - USEDNew - 1974 SPECIFICATIONS:Grinding Capacity 6" x 18" x 15-1/2"

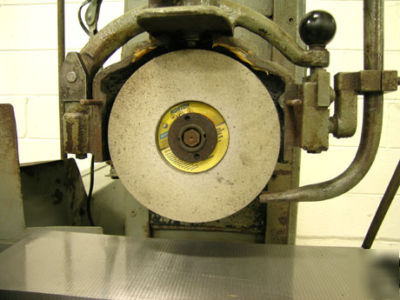

Size of Wheel 7" x 1/2" x 1-1/4"
Longitudinal Travel - Maximum 22"
Hydraulic Feed Rates - Longitudinal (Variable) 5 - 100 FPM
Vertical Travel - Maximum 15-3/4"
Spindle Drive Motor (A.C. Direct Drive) 1 HP

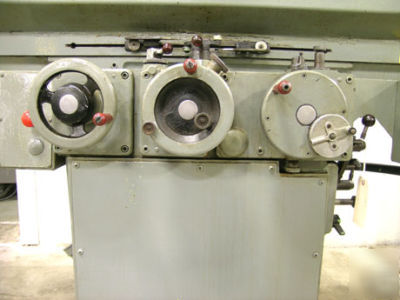

Approximate Weight 2,550 Lbs. EQUIPPED WITH:Hydraulic Cross & Longitudinal Feeds
Automatic Incremental Downfeed for Slot & Plunge Grinding

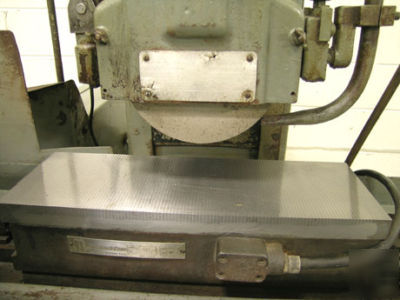

6" x 18" Magna-Lock Fine Line Electromagnetic Chuck

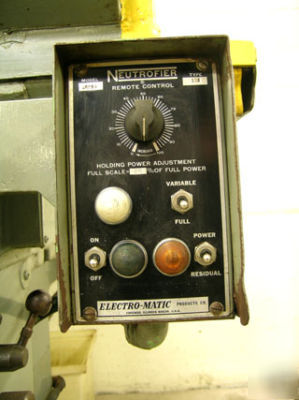

Electro-Matic Remote Control Neutrofier/Chuck Control
Manual Over the Wheel Truing w/.0001" Micrometer Adjustment & Profile Template
