#10009 - okamoto model igm-1E-cnc internal grinder

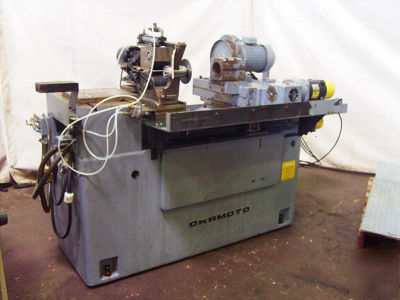

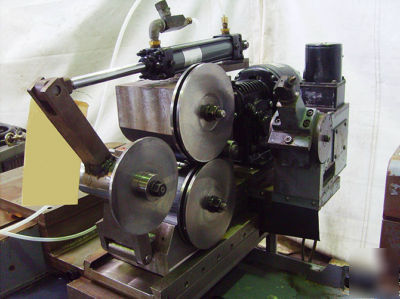

OKAMOTO MODEL IGM-1E-CNC INTERNAL GRINDER
Internal diameter to be ground: 0.024 - 3.94"
Maximum swing inside splash guard: 10.6"
Maximum longitudinal table travel: 19.7"
Maximum cross wheelhead travel: 3.94"
Table longitudinal movement (Z-Axis):
Least input increment: 0.0001"
Automatic feed: 0.1 - 5000 mm/min
Wheelhead cross movement (X-Axis):
Least input increment: 0.0001" in diameter
Least command increment: 0.00005"
Automatic feed: 0.1~800 mm/min
Wheel spindle speed range: 10,000 - 60,000 RPM
Work spindle speed: 200 - 800 RPM
Net weight (including NC system): 4440 lbs.
Wheelhead cross feed (X-Axis) 0.5 HP DC Servo
Table longitudinal feed (Z-Axis) 0.8 HP DC Servo
Dresser up & down mechanism 0.03 HP
Work spindle cooling water pump 0.08 HP
Magnetic dust separator 0.03 HP

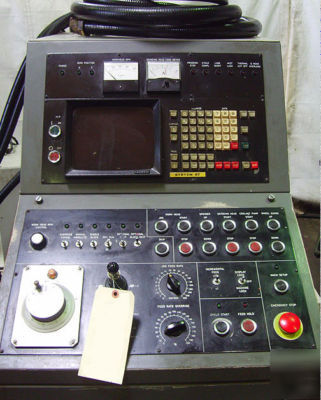

Fanuc 6TB 2-Axis CNC controller
Oil-Mist lube system with pressure switch
Extra self centering motorized workhead
