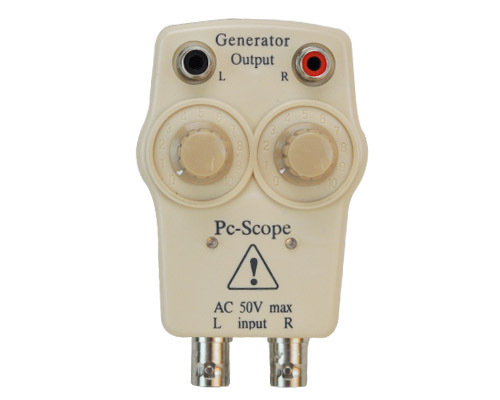

Dual-channel pc digital virtual soundcard oscilloscope
View and save signal waves form with this oscilloscope which is an ideal tool to come in the digital world.
Small size and multifunctional
2 channel input and synchronized display
Ideal for digital development
Examine apparatus and appliances
No installation, no modifying the setting of computer and no lingering internal memory
(1) Computer oscilloscope performance index
Frequency analysis Can display the frequency between 10 to 20KHZ
Input frequency range 10 - 20000HZ
Input voltage range AC 10mv~50 V
Synchronization mode multiple synchronous mode automatic and manual selection
(2) Signal generator performance index
Signal generator Can generate two sine wave, triangle wave, square wave and 1HZ~20KHZ sweep frequency signal.
Output voltage 1V AC 20HZ~20KHZ Some of sound cards can choose for 5V AC
Output frequency range 1HZ~20KHZ .Sine 20HZ is good, 7KHZ 15KHZ is available
(3) The frequency of performance indicators
Cymometer Can display and measure two road input signal frequency
Frequency measurement range :( 10HZ ~ 20KHZ)
CD which includes instruction manual and driver installer
