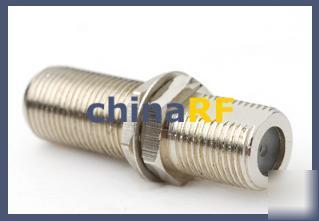

F adapter f jack to jack with bulkhead straight
F adapter F Jack to Jack with bulkhead straight
F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products. F connectors are available in a limited selection to fit various cable sizes.
Temp.range................-40 +60 centigrade
Vibration.................100m/s2 (10 500Hz)
Frequency Range...........DC 1GHz
Working Voltage...........170V max
Withstand Voltage.........500V rms
Center Contact............ 10m
Outer Contact............. 5m
Insulation resistance .... 1000 m
VSWR Straight............. 1.20
shell ..............brass ................nickelplated
contact pin ........brass.......gold or silverplated
elastic contact.... beryllium ............gold or silverplated
insulator ..........PTFE or PE
crimping suite..... copper alloy......... nickelplated
