> Circuitgear cgr-101 7-in-1 function usb scope adapter

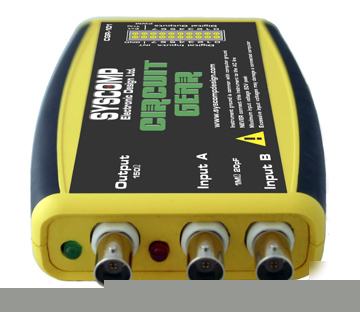

Circuitgear cgr-101 7-in-1 function usb scope adapter
* Saelig is an Authorized Syscomp Distributor *
Description: PC-based seven-in-one scope adapter. Functions as a oscilloscope, function generator, spectrum analyzer, network analyzer, noise generator, and PWM output source!
An oscilloscope, waveform generator, and digital I/O port integrated into one small, low cost unit.
* 20MS/s dual channel, 10-bit oscilloscope
* 2 MHz DDS arbitrary waveform generator
* USB powered, no AC adaptor required
* Open source software for Windows, Linux and Mac
Click Here to Download the Datasheet
Click Here for our Product Comparison Table
On-screen, cursor selectable
Amplitude and timebase cursors
Sine, Square, Triangle, Ramp, Noise
Variable duty cycle at constant frequency
8 bit resolution, vertical and horizontal
The Bode Plotter is VNA (Vector Network Analyzer) software that operates the CircuitGear hardware over the frequency range 0.1 Hz to 3 MHz to measure amplitude and phase for circuit theory and filter design exercises.
The oscilloscope, generator, and digital I/O are operated from a software GUI (graphic user interface) included with the hardware. The software is open-source and source code is included. The sotware is written in Tcl/Tk, a scripting language that is easy to learn yet powerful for creating GUIs. It runs under Windows, Linux, Unix, and Mac operating systems.
CircuitGear is compatible with National Instruments LabVIEW, MATLAB, Visual Basic, and any application or programming language which can access serial ports. Syscomp provides LabVIEW example VIs that demonstrate how to control CircuitGear. Screen shots of the LabVIEW examples are shown below. The LabVIEW examples are available on the download page.
Pentium 233 MHz, 64 MB RAM, 5 MB Hard Drive Space
Minimum 1024x768 screen resolution at 16 bit color depth
Windows 98SE/Windows ME/Windows 2000/Windows XP/Windows Vista
Linux with kernel 2.4 or higher, X Windows
Mac OS X 10.4 or higher, PowerPC or x86
