Loop antenna package
This Loop package consist of 3 - 144 MHz. 2 meter loops & 3 - 432 MHz. loops.
One 144 mhz 2 meter loop and one 432 mhz loop are fully assembled ready for use.
The other two 144 mhz loops and two 432 mhz loops need the mast plate and clamps installed. ( very easy to do )

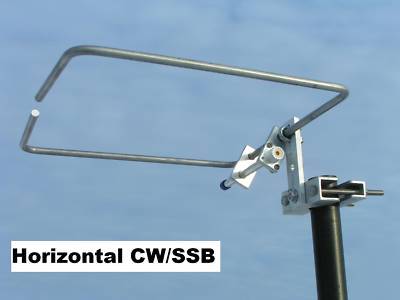

144 Mhz. ( 2 meters ) Omni-directional loop antenna.
For Base or Mobile use Mounts great on the side of Rohn 25 tower too.
144.000 to 145.000 Mhz. band width..
Tuned at 144.200 Mhz. for Horizontal Polarity CW/SSB use.
Element measures just under 11 inches x 11 inches and is
5/16 inch diameter 6061 Aluminum Solid Rod. ( very low wind resistance )
Tuning is done by Gamma Match.
SO-239 Silver Plated coax connector.
Adjustable Mast clamps fit 1 to 2 inch mast pipe.
Stainless Steel/Aluminum/Plated materials used
This loop is designed so you can work stations in different directions at the same time.
They come in very handy during contests and local nets.
Comes with 30 day money back guarantee.
If your not satisfied simply return it.

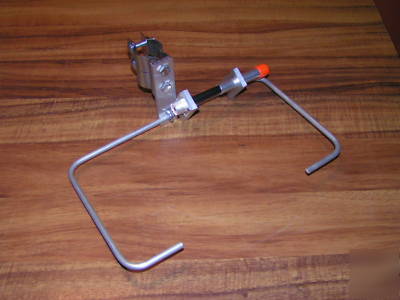

432 MHz. Omni-directional loop antenna.
For CW/SSB use , Tuned at 432.100 Mhz
Can be used for base or mobile.
Element is 5/16 inch diameter 6061 aluminum solid rod.
Element Measures 10- inches x 6 inches
SO-239 Silver plated connector. 50 ohms
Comes with Adjustable Mast clamp, fits 1 inch up to 2 inch outside diameter mast pipe.
* I also have a larger clamp available for this loop, fits 1 inch up to 2- inch outside diameter mast pipe.
* Let me know if you want the larger clamp when you pay for your loop.
* Otherwise your loop will come with the 1 inch up to 2 inch clamp.
Stainless Steel/Aluminum/Plated materials.
