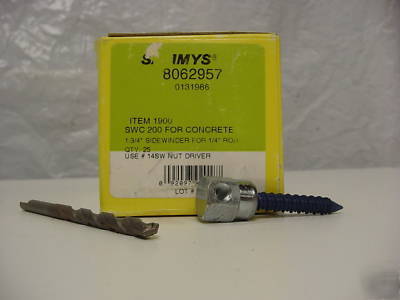

Itw buildex sammys swc 200 concrete to side 1/4" rod
Follow these steps to complete installation.
See also Figures 5 through 10 (vertical) and 15 through 20 (horizontal) of detailed installation instructions.
After pre-drilling has been completed, install the SLEEVE TOOL over the bit (the bit should remain in the drill).
Insert the appropriate nut driver #14 for CST, #14SW for SWC into the opposite end.
Insert the concrete screw into the nut driver. Now you are ready to install the screw into the concrete member.
Place tip of screw into the pre-drilled hole, turn impact/drill unit to drill mode and begin insertion. When the nut driver spins free on the screw, installation is complete. Stop and remove drill.
The concrete screw is ready to receive " all thread rod or bolt stock.
Do not install concrete screws while the drill unit is in impact mode. Doing so will destroy the pullout factor of the fastener. Eye protection should be worn at all times when installing this product.
