Hp/agilent 8753ES network analyzer, atn-4111B 6 ghz
HP/Agilent 8753ES s-Parameter Vector Network Analyzer Manufacturer's Specifications:
The Agilent 8753ES Vector Network Analyzer allows complete characterization of RF components. The 8753ES Network Analyzer includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions.
* 011 50 Ohm without test set
* 1D5 High Stability Frequency Reference
The ATN Microwave ATN-4111B is a 30 kHz to 6 GHZ S-Parameter Test Set. (Also Known as HP - Agilent N4414A):
The ATN-4111B Multiport S-Parameter Test System allows true multiport vector-error corrected s-parameter measurements of both active and passive circuits. This test system contributes two-port accuracy and ease of use to reduce the errors, time and cost of measuring transistors, multi-stage amplifiers, differential amplifiers, couplers, hybrids, circulators, switches, multiplexers, transmission lines, and other multiport components. The ATN-4111B eliminates the manual manipulation of the Round Robin technique and delivers accuracy similar to a two-port VNA calibration. This is accomplished with the four-port test set hardware and companion application software that uses a multiple-term calibration algorithm to achieve true four-port error correction. The ATN-4111B four-port test set replaces the network analyzer two-port test set; multiplexing the A, B, and R channels to the four test ports. The system can measure the complete s-parameters of one-, two-, three-, and four-port devices.
* 4-port measurement capability
* 2-port accuracy and ease of use
* Practical, fast, single connection measurement
* Convenient, thorough, accurate measurement of multiport and differential devices
ATN-4111B Test set (N4414A) System performance summary
Transmission measurements at 10 Hz IF bandwidth with full error correction and +15 dBm maximum output power.
Measurement port characteristics
Residual uncertainties for corrected data using four-port error correction. These apply for 25 C with less than 1 C variation from calibration.
* Frequency range 0.3-1 MHz .001-2 GHz 2-4 GHz 4-6 GHz
* Directivity 48 dB 48 dB 46 dB 44 dB
* Source match 42 dB 42 dB 38 dB 35 dB
* Load match 48 dB 48 dB 46 dB 44 dB
* Refl. tracking ( ) .012 dB .012 dB .012 dB .020 dB
* Trans. tracking ( ) .006 dB .006 dB .006 dB .013 dB
* Frequency range 300 kHz - 6.0 GHz
* Insertion loss, any test port to A/B
o 0.3 to 300 MHz: 22.4 dB max.
* Insertion loss, RF to any test port
* 0.3 to 300 MHz: 7.7 dB max.
* 0.3 to 300 MHz: 29.0 dB max.
* .003 to 6 GHz: 32.5 dB max.
* Isolation, port to port and A to B 85 dB
* Maximum operating level +20 dBm
* Test port connectors 3.5 mm (m)
* VNA connectors 50 ohm Type-N (f)

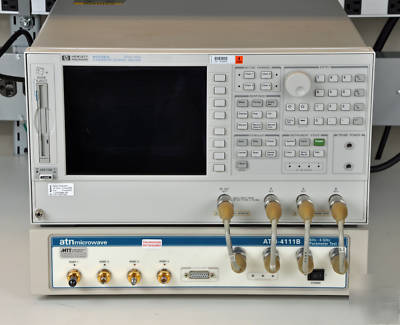

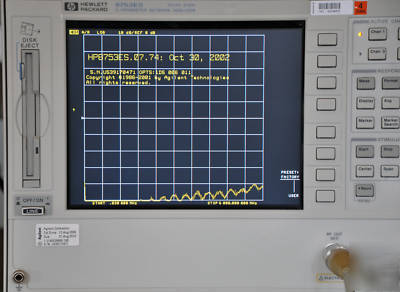

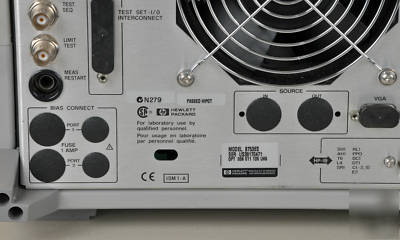

* Agilent 8753ES Vector Network Analyzer

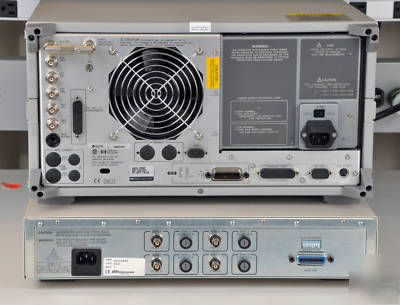

* ATN Microwave ATN-4111B 300 kHz - 6 GHz S-parameter Test Set
* Multiport Software Ver. 1.40c

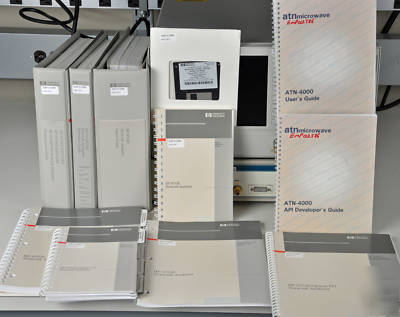

* All manuals on CD-ROM (paper when available)
* No other accessories, manuals, modules, options, probes, orig. packing, etc. unless stated
Warranty: These units are in excellent physical and working condition. The units come with a 7 day guarantee against being DOA from receipt.
