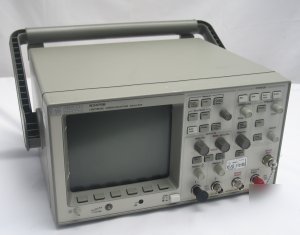

Hp 83475B lightwave 500MHZ oscilloscope analyzer
HP 83475B Lightwave 500MHZ Oscilloscope Analyzer Used
Model/Part No:83475B Our Item ID: 2657
Agilent/HP 83475B Lightwave Communications Analyzer w/ Options 014 051.
The HP 83475B is an easy-to-use measurement tool for your lightwave and electrical digital communication applications. The unit measures signal compliance to a variety of optical and electrical communication standard mask and template specifications. Custom mask tests can be created and loaded into the instrument memory thru the optional HP-IB or RS-232 remote control interface. The 62.5/125 um optical input of the 83475B measures lightwave datacom and telecom signals at wavelengths ranging from 780nm up to 1600nm. With its low distortion, PIN-based optical receiver, and low instrument noise floor, the HP 83475B accurately measures the important parameters of laser and LED transmitters for SONET/SDH, ATM, and Fibre Channel.
Frequency: DC to 500 MHz (-3 dB)
Wavelength range: 780 to 1600 nm
Item Tested?: Partially TestedPhysical Condition: Good; Working Condition: Not Fully Test, but Powers Up40 | 24x 20x14 | 1
