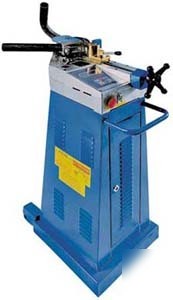

Ercolina SB48 superbender rotary draw tube &pipe bender
Capacity: 2 " Tube / 1 " Sch. 40 Pipe
Max. CLR 8 " NC with Touchpad programming
* Bends to 90 in (7) seconds
* Bend any angle to 180 with programmable material spring back compensation; maximum CLR of 8
* Bend to CLR as small as 2D
* Ideal for producing consistent quality bends in large diameter pipe, tube, squares, rectangular, solids and other profiles
* PLC touch screen control offers easy access to auto and manual operating modes, programming, system diagnostics and multiple language capability
* Patented quick-change tooling system with multiple radii available
* Digital counterbend die positioning
* Remote foot pedal allows hands free operation
* Patented swing away counterbending die vise
* Portable with base wheels and lift handle
* Accepts Ercolina s two axis A40-P positioning table for multiple and sequential bends
* Replaces outdated ram style hydraulic benders
* One (1) year limited warranty
SB48 Capacities for Pipe Bending Applications
Bending capacities based on centerline radius two times diameter on mild steel.
* Pipe or Tube die kits (Dies sold individually and in kits)
* Large radius TUBEKIT2: $2400.00
