Chatillon tcm 201-hs tension - compression tester

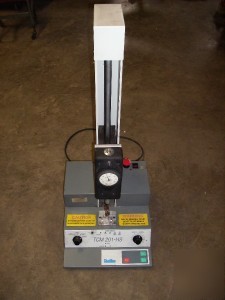

Chatillon TCM 201-HS Tension - Compression Tester
* Rugged all metal construction.
* Horizontal clearance: 2-1/4'' [60 mm].
* Vertical travel: 18'' [460 mm].
* Five variable speeds: 0.5 to 12.5 in/min. standard
* Two rotory dials and three button keypad.
* Force display and controls on force gauge.
* Ball screw drive for precise linear motion.
* Dynamic braking for controlled stops.
* Standard mounting for Chatillon force gauges.
* Manually operated force tester.
* Up-front rotory dials and keypad control.
* High and low force limits set at force gauge.
* Calibrated rotory dial speed control.
* Test mode selection at rotory dial.
* Mechanical high and low travel limits.
* Single or continuous cycling between limits.
* Fast return selector switch.
* Force analysis software - force vs. time.
* 110 Vac / 220 Vac operation
* Optional: Mounting adapters, cables and grips.
* Force: 0.25% Full Scale.
* Speed: 5% of maximum speed.
