* BIRD Site Analyzer SA-2000
* Frequency Range: 806 - 2000MHz
* 15NNF50-1.5A Armored Core Cable

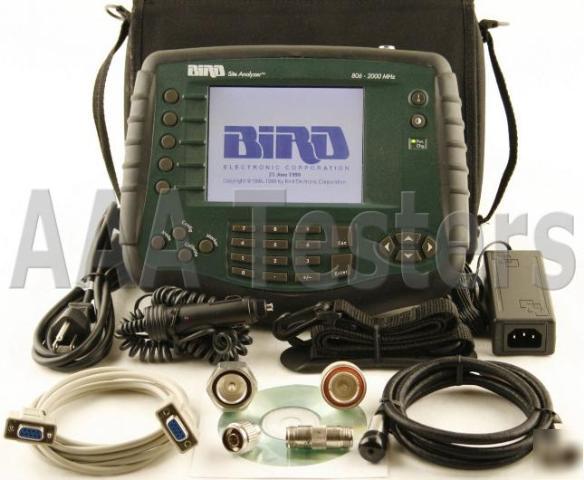

BIRD SA-2000 Cable & Antenna Analyzer
806 MHz to 2000 MHz Frequency Range
The Bird Site Analyzer is a multifunction test instrument for use in installation and maintenance of wireless systems. Antenna systems are tested by using a Site Analyzer to measure match conditions. Data is graphed at 238 points across a user-specified frequency band or distance range. Transmitter systems are tested by using a Site Analyzer and a Bird power sensor to measure RF power. Data is displayed as power or match efficiency, depending on the sensor.
* Easy operation for first-time, occasional or experienced users
* Digital Power meter option compatible with Bird power sensors
* Accurate and repeatable measurements
* Immunity to on-channel interference (+13 dBm) for testing at co-located antenna sites
* High-resolution color display
* On-screen comparison of live sweep and recalled trace
* Unlimited trace overlays per report to compare antennas and track performance over time
* Display forward and reflected power as well as VSWR and return loss.
* Compatible with Model 5010 Digital Power Sensor and DPM Elements
* Locate long range problems with 238 display points
* Pinpoint small problems with 60 dB dynamic range
* High resolution marker reports VSWR with the precision of expensive laboratory equipment
* Perform cable insertion loss measurements
* Flash feature allows easy firmware upgrades via e-mail
The Site Analyzer s advanced design and high resolution color display help you detect minor problems before they become major headaches. Bird s instrument easily uncovers faults that elude less sophisticated testers. And the Site Analyzer s high directivity and low source match ensure accurate and repeatable Match and Fault Location measurements.
* Frequency Range: 806 - 2000 MHz
* Trace Resolution: 238 data points
* MEASUREMENT CHARACTERISTICS
* Return Loss: 0 to -60 dB
* Test Port: N-type female connector
* Speed: 1 multi-frequency scan/4 seconds
* Immunity to Interfering Signals: Rejects on-channel signals up to +13 dBm.
* Maximum Input Signal: +22 dBm
* Data transfer: 9-pin RS-232 (DB9), compatible with PC serial port.
* Printer: 25-pin (DB25) parallel. Built-in driver.
* Internal: Rechargeable (fast charge) Li-Ion batteries. 3 hour minimum operating time. Auto shut-off conserves battery life.
* External DC: 9 to 16 Vdc, fused
* External AC: 90 to 264 Vac, 45-66 Hz
* Operating Temperature: -10 to 50 C (14 to 122 F)
* Storage Temperature: -40 to 80 C (-40 to 176 F)
* Humidity: 95% 5% max., (non-condensing)
* Altitude: Up to 15,000 feet (4572 m)
* Dimensions: Hand held not to exceed 24 linear inches.
