Psc falcon 4220 handheld bar code scanner used

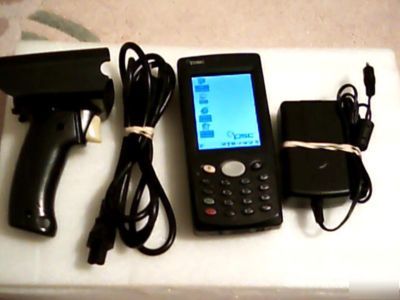

Up For Sale Is Used PSC Falcon 4220 Hand held Bar Code Scanner In Good Working Condition. Tested.
PSC Falcon 4220 Windows CE .NET PDA PSC Falcon
Intel XScale PXA255 400MHz processor
Windows CE .NET 4.2 operating system
Integrated bar code scanner (laser or linear imager)
Ruggedized (IP54 and 4' drop)
Optional handle for scan intensive applications
Open architecture - user accessible SD and CF slot
802.11b wireless LAN (optional)
Optional docking station with spare battery charger
The PSC Falcon 4220 is PSC's latest generation PDA device, combining a compact, ruggedized form factor with the flexibility of Microsoft's CE .NET operating system. The PSC Falcon 4220 is designed for retail, warehousing and logistics applications where maximum performance and durability is required in a compact handheld device.
Under the hood, the PSC Falcon 4220 uses cutting edge technologies from the leaders in mobile and wireless technology, such as Microsoft, Intel, Agere and others. The PSC Falcon 4220 features the Intel XScale PXA255 400MHz processor and the Microsoft Windows CE .NET operating system, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise.
The Intel XScale processor provides you with the highest performance mobile processor available today along with advanced power management capabilities for extended battery life. Microsoft's Windows CE .NET operating system gives you the freedom to select the software solution that best meets your needs.
The PSC Falcon 4220 is designed from the ground up for rugged applications. With its IP54 sealing, 4 foot (1.2m) repeated drops to concrete, and wide operating temperature range, the Falcon 4220 stands up to most any demanding application.
The PSC Falcon 4220 incorporates the latest technology in color TFT displays. With its super-bright, high contrast display, the 4220 works as well outdoors as it does inside. The integrated touchscreen allows for pen/touch based input and handwriting recognition.
The PSC Falcon 4220 offers maximum flexibility with both a user accessible Compact Flash (CF) slot and a Secure Digital (SD) slot.
PSC Falcon 4220 Specifications
3.5" / 8.9cm 240x320 graphic, transflective TFT
Sunlight readable (for outdoor use)
Industrial, high strength polycarbonate/ ABS-blend plastic
Multiples 4.0' / 1.2m drops to concrete
Laser scanner depth-of-field chart
(printing resolution, contrast and ambient light dependent; *Minimum distance determined by symbol length and scan angle)
Linear imager depth-of-field chart
(printing resolution, contrast and ambient light dependent; * Minimum distance determined by symbol length and scan angle)
China postage/ Datalogic 25
One triple-color LED for ALARM notification (R) and charger indicator (G/B)
One dual-color LED for scanner indicator
CDRH Class II; (Caution: laser radiation p do not stare into beam)
RS232 via optional cable or cradle
Supports USB v1.1 both host and client (dock and terminal)
One compact Flash Type II slot (3.3v)
2.5mm stereo earphone jack with microphone input (headset)
1800mAh Li-Polymer removable/rechargeable battery
Optional 2700mAh hour battery
25mAh rechargeable backup battery (holds system data at least 2 hours without main battery)
AC adapter with 100-240 VAC, 50-60Hz
Support for XScale application modes including:
Turbo mode, normal mode, idle mode, sleep mode radio support
Optional integrated 802.11b
VT100/220, HP700/92, IBM 3270 & 5250 terminal emulators
Browser support via Microsoft Internet Explorer
Wireless software distribution and terminal configuration via Falcon Management Utility (FMU)
Many standard Windows CE development tools (Embedded Visual C++, Visual C#, Visual Basic, .NET, Personal Java 1.1)
Java Virtual Machine (JVM)
Falcon CE Developers Toolkit
Wavelink Studio and Avalanche
Spare battery charging slot
USB host and client interface
Standard RS232 communication
Ethernet module ready (optional)
