New dual-axis magnetic sensor module interface improved

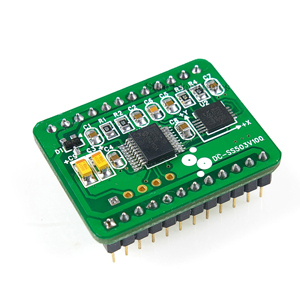

Dual-axis Magnetic Sensor Module with UART & I 2 c Interface
Dual-axis Magnetic Sensor Module with UART& I 2 c Interface
As an improvement version of DC-SS503, this magnetic sensor module provides an easy-to-use yet more convenient PIC16F690-based UART interface for system integration requirements while I 2 c is still reserved. With the help of powerful dual-axis magnetic sensor IC MMC2120MG, the ouput range can be as wide as 0 -359 . The geomagnetic calibration algorithm helps keep the interference of other magnets to the minimum and in the mean time, allows users to set declination. The DIP-like packaging of this module facilitates not only the further development but also the system integration.
* Power Supply: DC 3.3V or 5V
* PIC16F690-based UART interface
* Magnetic declination resettable
Slave, FAST ( 400 KHz) mode
* Built-in pull-up resistance(4.7K)
* Geomagnetic calibration algorithm
* Highly precise measurement and good stability
* DIP-like packaging facilitates integration
Linearity Error (Best fit straight line)
Null Field Output Change Over Temperature 2
UART & I 2 c output selection UART-1, I2C-0
Dual-axis Magnetic Sensor Module with UART& I 2 c Interface 1
