6-spindle leland-gifford multiple-spindle drill #24482

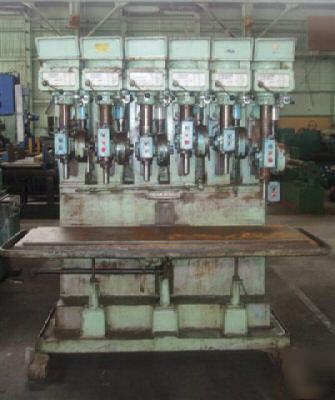

6-SPINDLE LELAND-GIFFORD MULTIPLE-SPINDLE DRILL
New 1978, Serial No 2LVS-327, Model 2LVS
2 HP Motor Drives To All Six Spindles
Power Down-Feed To (6) Spindles
Coolant System (Built-In)-Needs Pump
Spindle-Head Adjustment, Vertical...... 9"
Spindle Travel......................... 5"
(3) Power Feeds........................ .002/.004/.006
Distance Between Spindles.............. 11"
Max. Spindle Nose To Table............. 29"
Spindle-Center To Upper Column Ways.... 10"
Table Working Surface, W x L........... 20" x 78"
Spindle Nose Diameter.................. 15/16"
Spindle Speeds, Low Range.............. 35 TO 350 RPM
Spindle Speeds, High Range............. 220 TO 2200 RPM
(6) Spindle Motor, Horsepower.......... 2 HP/1200 RPM
Weight, Approximately.................. 6200 LBS
