24 spdl natco G210 multi-spdl drill
24 Spdl Natco G210 MULTI-Spdl DRILL
24 Spindles Natco G210 MULTI-SPINDLE DRILL

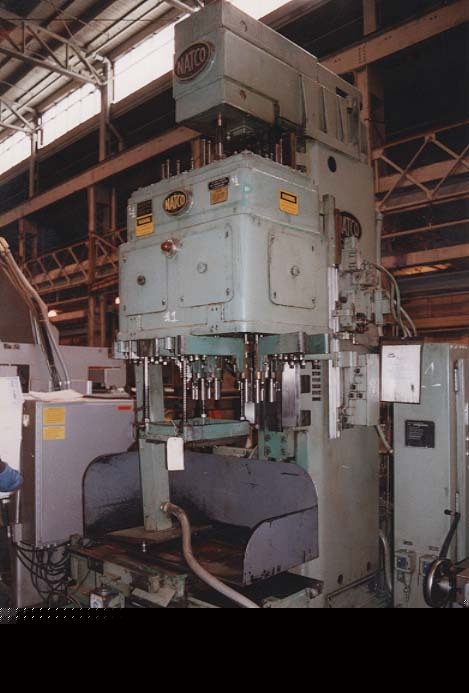

NATCO 24 SPINDLE MULTI-SPINDLE DRILLING MACHINE
S/N: G210-190 MODEL: G210 YEAR: 1980
SIZE OF HEAD................................. 15" X 24"
BORED # OF SPINDLES................................. 24
DIAMETER OF UPPERS.................................. 1"
CAST IRON WITH 24 SPINDLE................ .4375"
MILD SPEED WITH 24 SPINDLES.............. .3281"
FEED STROKE........................................ 18"
MAXIMUM FEEDING PRESSURE................... 10,000 LBS.
RANGE OF FEEDING............................. 1-29 IPM
RATE OF TRAVERSE.............. 145 FORWARD, 180 REVERSE
SPEED RANGE (36)...........................138-3041 RPM
APPROXIMATE FLOOR SPACE...................... 54" X 85"
APPROXIMATE WEIGHT.......................... 12,500 LBS
3 POSITION VICKERS SHUTTLE TABLE
** INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE **
