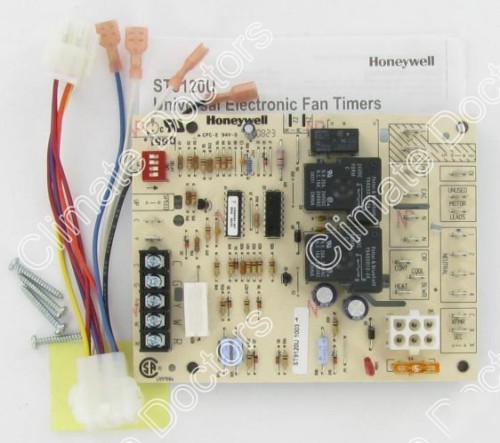

Honeywell ST9120U1011 control circuit board fan timer
Honeywell ST9120U1011 Control Circuit Board Fan Timer
Honeywell ST9120U1011 Universal Electronic Fan Timer (Replaces ST9120U1003)
Central appliance wiring point simplifies appliance assembly and service.
Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
Universal Electronic Fan Timer with adjustable heat fan on, heat fan off, cool fan on, and cool fan off
Integrates control of combustion blower and circulating fan operations for a gas warm air appliance
adj. 30, 60 sec (set at 30 sec)
adj. 60, 120, 150, 180 sec (set at 120 sec)
Temperature Range, Ambient (F)
Temperature Range, Ambient (C)
Certified: File No. LR95329-17
all ST9101's, all ST9120's, all ST9141's, and all ST9160's
