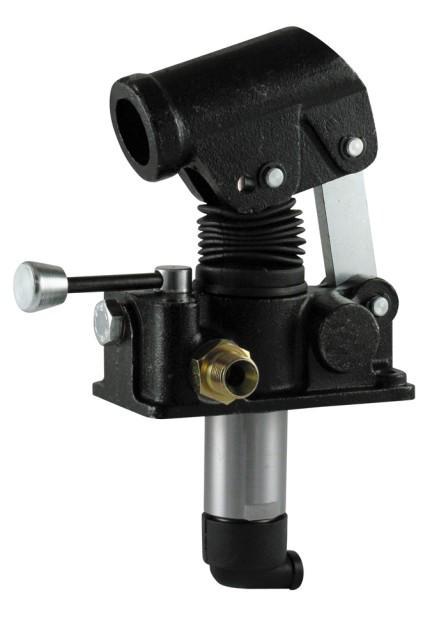

Double acting hydraulic hand pump 12CM3 6060.0105
FLOWFIT DOUBLE ACTING HANDPUMP 6060.0105
Flowfit handpumps have been developed and manufactured for high performance and reliability. They are used in many different sectors such as transport, industry and agricultural.
* All handpumps are fully interchangeable with other leading Italian manufacturers.
* Supplied with rubber protection for the piston.
* Mounting kit to bolt handpump to a tank.
* Max working pressure 380 bar.
* With hydraulic brakes to operate even with pressures less than 25bar.
* For use only ISO 6743/4 (DIN 51524) hydraulic mineral oil.
* Viscosity must be according to ISO 3448 (DIN 51519) standards
Minimum viscosity: ISO VG 15
Maximum viscosity: ISO VG 100
Advised viscosity: ISO VG 46
* The main cause for failure in most hydraulic installations is due to excessive fluid contamination.Advised filtration: 50-80 microns. Contamination class 18/14 ISO 4406 (9 NAS 1638)
* Working temperature: from -20 c to 80 c
