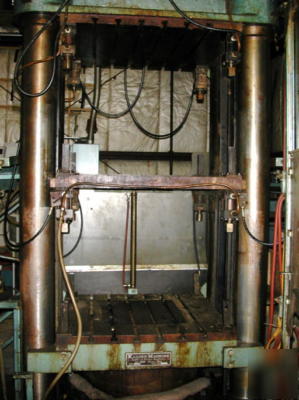

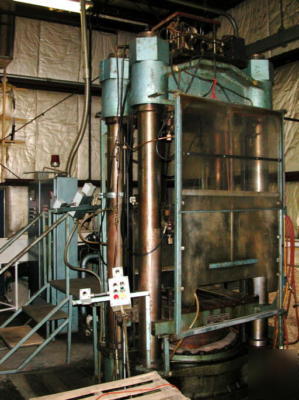

1000 ton karder 4-post hydraulic molding press
4-POST HYDRAULIC MOLDING PRESS
Click to view a video of this machinePLAY
MODEL WITH 2-OPENINGS
MAX. CAPACITY: 1000 TON
MAX. STROKE: 40" UP-ACTING
MAX. DAYLIGHT TO BED: 72" OVERALL (36" EACH OPENING)
BED AND RAM AREAS: 40" RL X 37" FB
SPEED: APPROX. 200 IPM CLOSE/50 IPM PRESSING

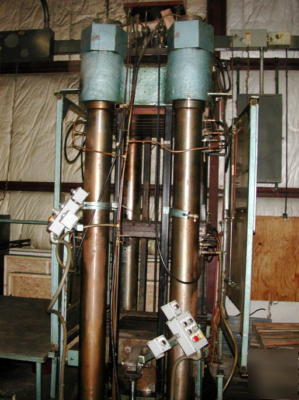

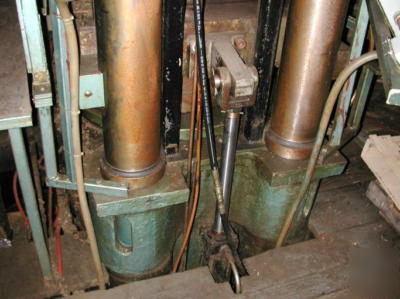

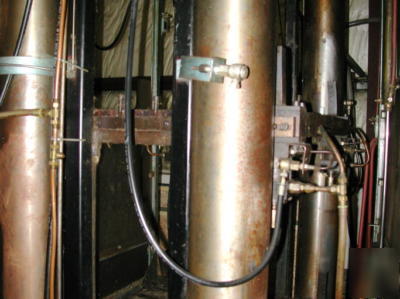

POST SIZE: 8" DIA. POSTS
CYLINDER BORE: 30" DIA.
DISTANCE FLOOR TO RAM: 80" (CURRENTLY 43" BELOW FLOOR)
HYDRAULICS: *3 UPDATED(1987) MAIN MOTORS &PUMPS

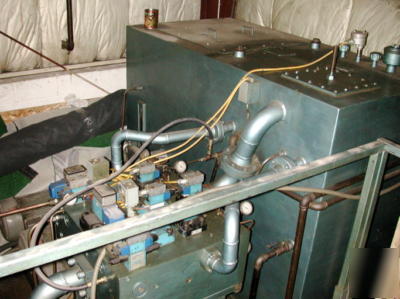

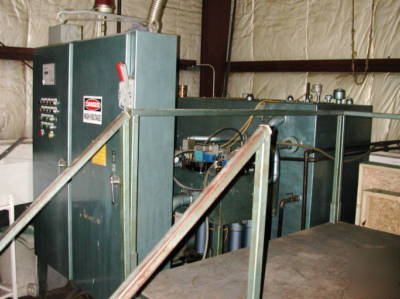

FLOOR MOUNTED HYDRAULIC TANK & PUMPS

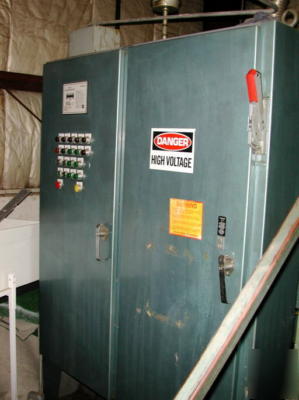

ELECTRICS: *MAIN CONTROL CABINET-FLOOR STANDING

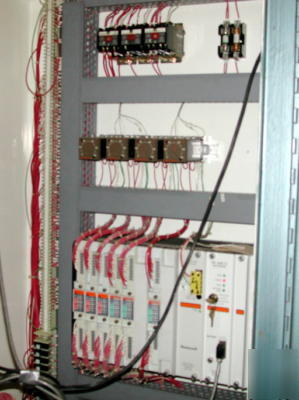

HONEYWELL #623-30, 620-15 CONTROLLERS
APPROX. DIMENSIONS: 14'6" HIGH, 7' RL, 5' FB
EQUIPPPED WITH: 2 PLATTEN OPENINGS
2 PULL BACK CYLINDERS
*NOTE: THIS PRESS WAS REBUILT AND UPDATED BY KARDER IN 1987
**NOTE: VIDEO AVAILABLE OF PRESS UNDER POWER IN MICHIGAN PLANT!
