> A.o. smith BTP150A-540 a.o. smith 150GAL. 540,000 btu a
A.o. smith BTP150A-540 a.o. smith 150GAL. 540,000 btu a

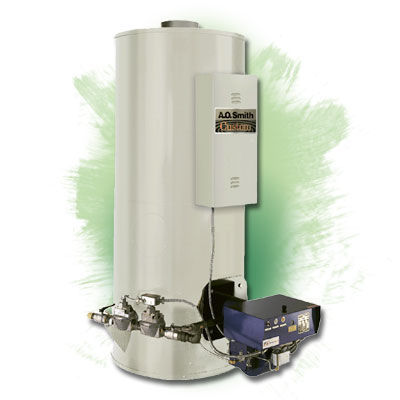

A.O. Smith BTP150A-540 A.O. SMITH 150GAL. 540,000 BTU A BRAND NEW WHOLESALE FOR $21,000.00 CALL HOWARD AT (***)-806-1469 ( MAKE AN OFFER ) IF NEED MORE IMFORMATION GO TO A.O. SMITH WEB SITE. THANK YOU FOR LOOKING.
The large-volume powered burner line includes the largest, most powerful A. O. Smith tanktype
gas water heaters. With tank capacities up to 600 gallons and firing capacities up to 2.5
million BTUs per hour, these large-volume high-output water heaters are capable of producing
over 3,000 gallons (GPH) of hot water per hour at an 80 F rise. These heavy-duty industrialgrade
water heaters are designed and built to handle the most demanding hot water heating
requirements of large commercial and industrial users.
Suitable for natural or propane gas
Electronic flame safeguard control with intermittent spark ignition
Main and pilot automatic gas valves with gas pressure regulators
Diaphragm air switch for proof of blower operation
FULLY AUTOMATIC CONTROLS WITH SAFETY SHUTOFF
High-temperature limit control (manual reset)
CSA certified and ASME rated T&P relief valve
Hinged-door control compartment for easy access
Upper and lower thermostats for accurate temperature control
Standard control is for 120 -180 F water service
Factory-installed low-water cutoff
Proprietary A. O. Smith glass lining provides superior coverage and unmatched
Equipped with multiple anode rods for additional corrosion protection
Heavy-gauge steel jacket with baked powder-coated finish for durability
Two 3 handhole inspection openings
MAXIMUM HYDROSTATIC WORKING PRESSURE
Required for activating warranty and assuring maximum operating performance.
Contact your local sales representatives or Authorized Start-Up Agent to arrange a
Assures proper installation and adjusts burner for clean combustion and most efficient
Design-certified by UL (Underwriters Laboratories), according to ANSI Z21.10.3-
Meets or exceeds the thermal efficiency and/or standby loss requirements of the U.S.
Department of Energy and current edition of ASHRAE/IESNA 90.1
Low-NOx burners from 300,000 BTUH up to 2 million BTUH
Complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar
Indicates model equipped with Wayne burner.
All other H dimensions are for models equipped with Power Flame Power Burner.
Certified Minimum Installation Clearances to Combustibles:
A clearance of 24 inches is recommended from serviceable parts such as relief valve, power burner, drain valve and anodes (anodes are located on side
Minimum gas supply pressure: 7 inches W.C.
Maximum gas supply pressure: 13 inches W.C.
BTP models are Category I appliances (Fan Assisted) and require a negative draft. These units should only be commonly vented with other Category I negative
draft appliances per the latest addition of the National Fuel Gas Code. An approved/listed Type B venting material is recommended. A negative draft of -0.02
to -0.07 is required in the vent.
Three-year Limited Tank Warranty
Factor y start -up required - Included for activating warranty and assuring maximum operating performance. Contact your local
sales representative or Authorized Start-Up Agent to arrange a FREE certified start-up.
For complete information, consult written warranty or contact A. O. Smith
Two layers of high-temperature ceramic fiber insulation in combustion chamber
Mounted on rugged channel iron skids
ASME-rated temperature and pressure gauge
csa certified and asme rated t&p relief valve
180 F water service thermostats
Factory mutual appro ved control arran gement
High or lo w water pressure s witch
csa certified and as me rated t &p relief val ve
Modular graphic burner syste ms mana gement on heaters with 270,000 B TU input and o ver
Available Low-NOx Burner BTU Input
Add N to Model Number for low-NOx Burner.
Gas water heater(s) shall be A. O. Smith model BTP _____________, with a storage capacity of
_______ gallons, an input rating of _______ BTU/hr and a recovery rating of _______ gallons
per hour (gph) at atemperature rise of 100 F. Maximum gas supply pressure to heater(s) shall
be 13 W.C., and ASME working pressure shall be 160 psi.
The tank shall be glass lined with alkaline borosilicate composition and fused to the steel
by firing at 1600 F, and shall be insulated with fiberglass insulation. The heater will also
be equipped with multiple anodes for cathodic protection. Heater(s) shall be equipped
with _______ NPT water inlet and outlet openings, and two 3 handhole cleanouts. The
heater(s) shall be constructed in accordance with ASME code, and the entire unit listed by
Heater(s) shall be equipped with a powered gas burner with electronic flame safeguard,
intermittent electronic ignition, main and pilot automatic gas valves, redundant solenoid
gas valve, gas pressure regulator, diaphragm switch for proof of boiler operation, and flame
Controls and other components shall include manual-reset high-temperature limit control,
upper and lower thermostats, combination temperature and pressure gauge, low-water
cutoff, CSA certified and ASME rated T&P relief valve, drain valve and draft regulator.
Control compartment door shall be hinged for easy access.
The heater(s) shall meet or exceed the thermal efficiency and/or standby loss requirements
of the U.S. Department of Energy and current edition of ASHRAE/IESNA 90.1. The tank
shall have a 3-year limited warranty against failure as outlined in the written warranty.
Professional start-up service shall be included and is required to activate warranty.
Professional Start-Up Included - required for activating warranty and assuring maximum
