Kromschroder krom schroder vg 20 VG20 solenoid valve

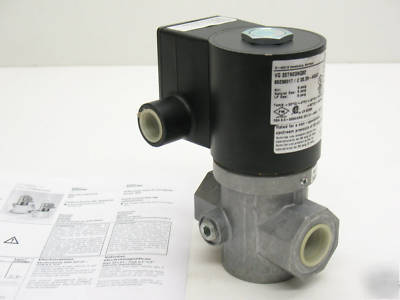

ITEM: Kromschroder Model VG-20-TN03-NQ92 Solenoid Valve for Gas Service, 3/4" Female NPT Connections, 5 PSIG (360 mbar) Pressure rating, Die-Cast Aluminum Body, 1 4" NPT Pressure Taps on Both Sides of the Valve Outlet, Fast Opening, w/ Electrical Connection Box, Supply voltage 120 Vac; +10/-15%; 50/60 Hz, NEMA 3 (IP 54), UL Listed, FM Approved, CSA Approved, w/ Operating Instructions Brochure.
15 = 1/2" (DN 25) Pipe Size Connections
T = "T-Product" = Threaded NPT Connections N = Female NPT connections
03 = Pressure Rating: 5 PSIG (360 mbar)
N = Fast Opening (less than 1/2 second)
Q = Supply voltage 120 Vac; +10/-15%; 50/60 Hz 9 = w/ Metal Terminal Connection Box
2 = w/ Screw Plugs (at the 1 4" NPT pressure taps on the valve outlet)
Ambient temperature range: -4 F to 140 F (-20 C to 60 C) UL up to 104 F (40 C)
Maximum inlet pressure: VG 2 psig (130 mbar) or 5 psig (360 mbar)
Opening time: VG..N fast opening less than 0.5 seconds
Closing time: Less than 1 second
Operating life: 2 million cycles
SCFH (m3/h) at 20" WC (50 mbar) pressure drop through valve
Supply voltage: 120 Vac; +10/-15%; 50/60 Hz
Type of enclosure: NEMA 3 (IP 54)
Solenoid coil insulation: Class F
CONDITION: Surplus NEW, w/ factory dust plugs, NO box.
SOURCE: From the spare parts stock of a large manufacturing company, surplus to their ongoing operations.
SOLD ELSEWHERE FOR APPROX.: $250
