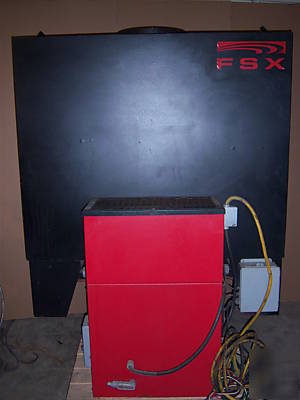

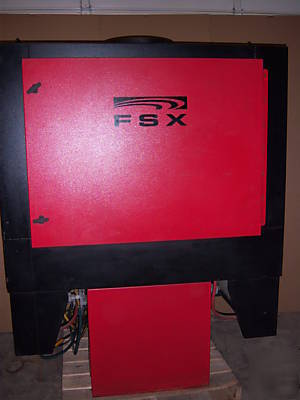

Fsx 550 smoke eater dust collector smoke fume dust
Contractor shall furnish and install the FSX-550 self-contained blower and dual stage filtration module per plans. The unit shall be an FSX-550 as manufactured , USA, or approved equal.
SECTION II. EXTRACTOR CAPACITY RATING
The capacity of each unit at a nominal rating shall be to produce continuously 3500 actual cubic feet per minute of airflow. Maximum free air delivery with a new cartridge shall be at least 4800 cubic feet per minute of airflow. The fan wheel is a 15 airfoil, backward inclined, non-overloading high efficiency spark resistant type. The fan wheel is constructed and tested to AMCA section 210-211 standard. The motor shall be ; 5 HP, ODP, 3450 RPM, 208/230/460/3/60. Primary filter cartridge; pleated composite cellulose, 450 square feet, 99.9% efficient at .3 micron particulate size
Extractor shall be of a downflow design with filter, inlet cone, fan and motor aligned vertically in the same plane. Total dimensions are not to exceed 40 length, 26 width, and 67 height. The top mounted 14 diameter intake and cyclonic separator is designed to extinguish sparks and distribute airflow evenly across the filtration media. A vertically centered threaded rod and locking nut provide gasket compression on the filter element. The extractor will have a minimum of 25 sq. feet of 1 thick class one acoustical lining.
this unit powers up and was working it came out of a working environment
takes approximately 7-10 business days to receive
